3-Axle 48,000 Liters Stainless Steel Tanker Trailer

Stainless steel tanker is ideal for a variety of acidic, toxic or corrosive liquid products.
JNE 48000 Liters stainless steel fuel tank trailer can be divided into several compartments, such as 2/3/4/5/6/7 compartments. Each compartment of tank has bottom valve.
All the stainless steel fuel tanker trailer will be carried out pressure test and metal inspection test, to ensure the tank sealing is qualified.
Different types of axles for tanker trailers. Disc or Drum brake system is available with ABS system.

Contact Now E-Mail Telephone WhatsApp

Product Details

Stainless Steel Tanker Trailers are used to transport crude oil, edible oil, drinkable water, milk and other important healthy liquids.

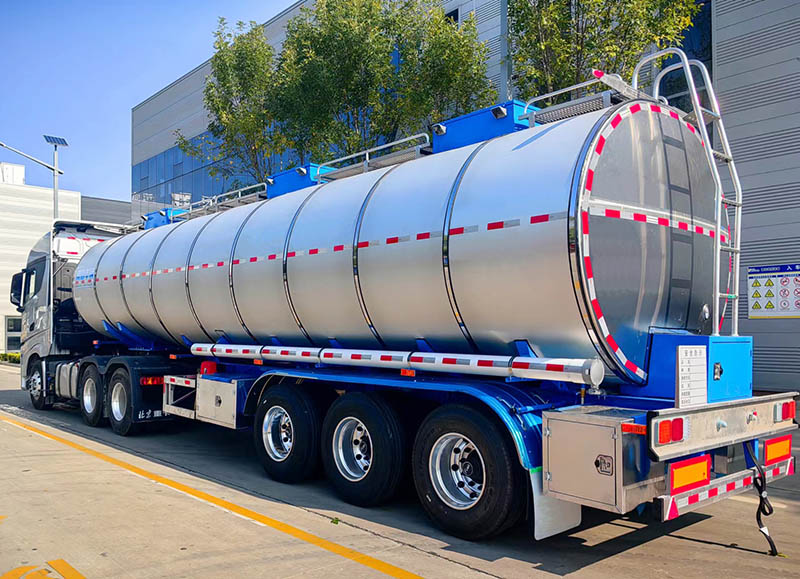

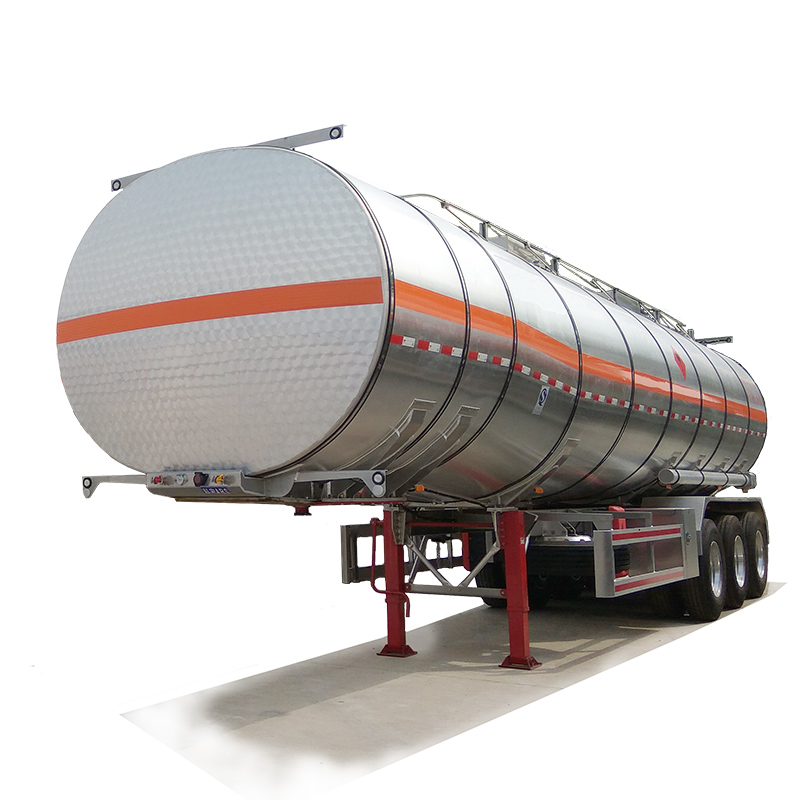

Tri-Axle Stainless Steel Tanker Semi Trailer

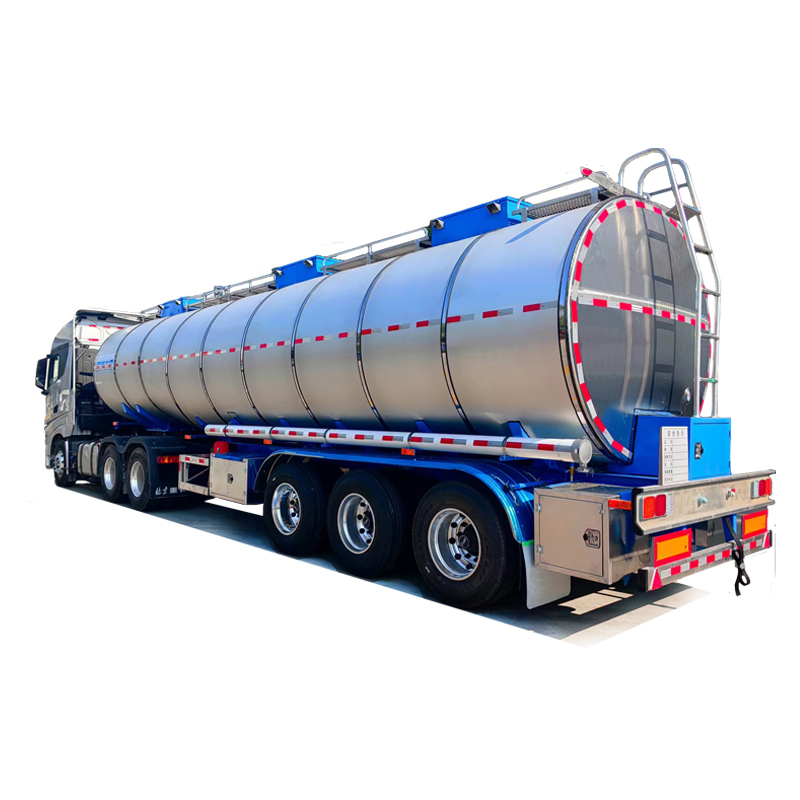

Tri-Axle Stainless Steel Tanker Semi Trailer 48,000 Liters With Insulation

Stainless Steel Tanker Trailer Specification：

Overall dimension: (11700mm-13000mm) * 2500mm *3700mm

Tank body material: Stainless steel

Axles: 3 axles

Suspension: Heavy duty mechanical suspension or air suspension

Tire: 12 units

Discharging Pipe: 2 pcs, 6m/each

King pin: 2'' or 3.5''

Landing gear: JOST, Fuwa or other famous brand

Brake system: WABCO, Sealco or other famous brand

Electrical system: 24V, LED lights

Tanker Semi Trailer Loading

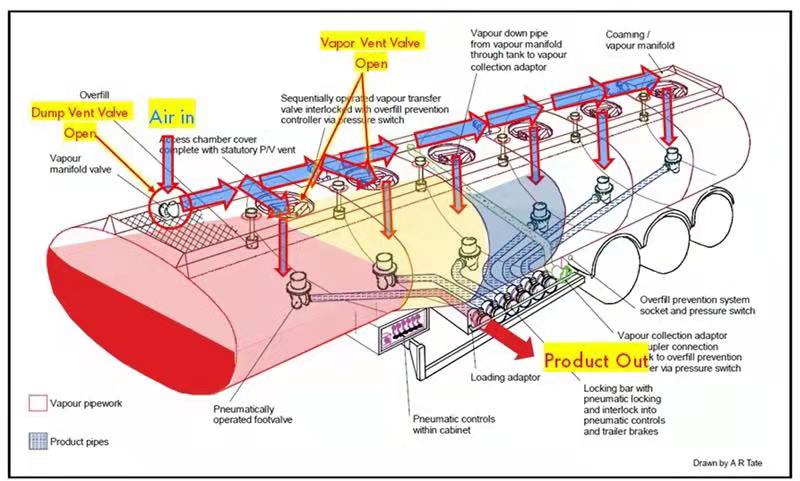

Loading and Unloading Diagram

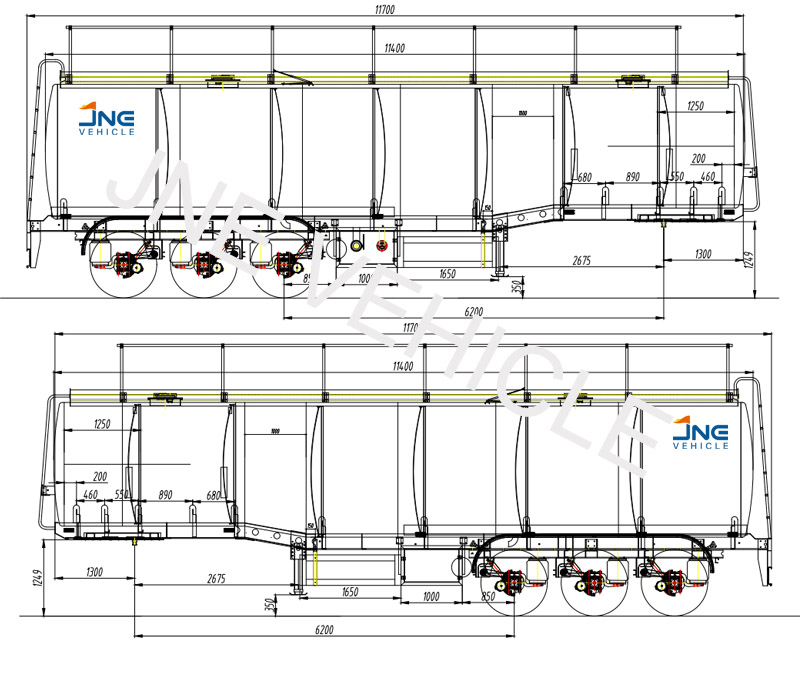

Tanker Trailer Drawing

Tri-Axle Stainless Steel Tanker Semi Trailer 48,000 Liters Drawing

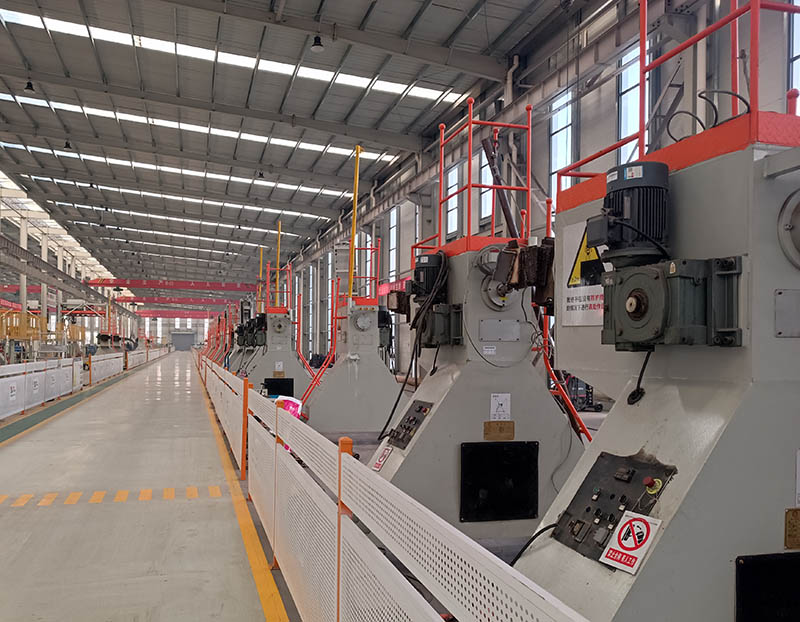

Tanker Trailer Fabrication Equipment

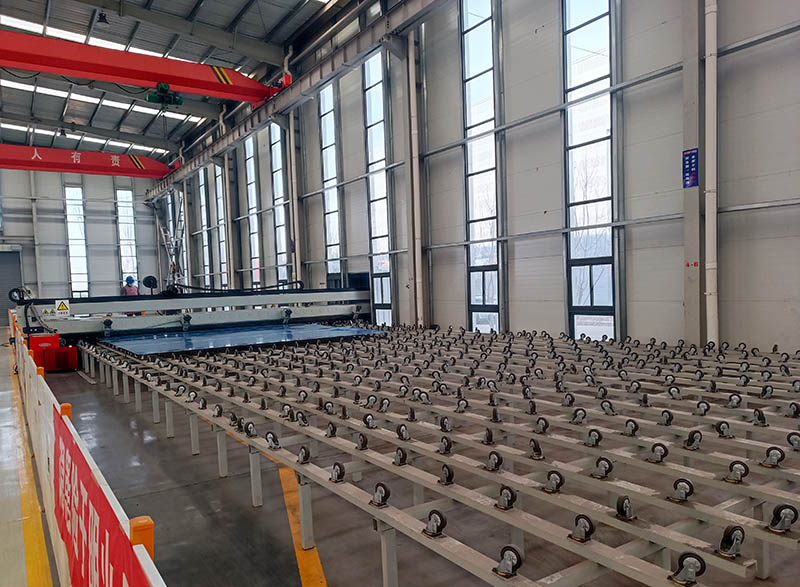

Tanker Trailer Production Line

Everything we do, from design to manufacture is to provide you with tank trailers that optimize efficiency, lower
costs, and deliver a long life cycle.
