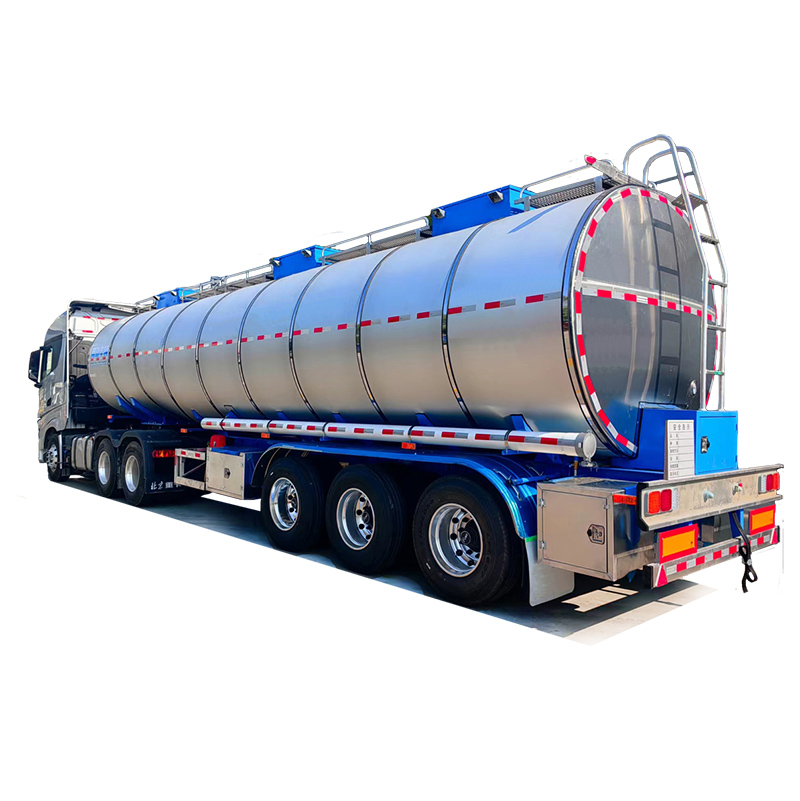

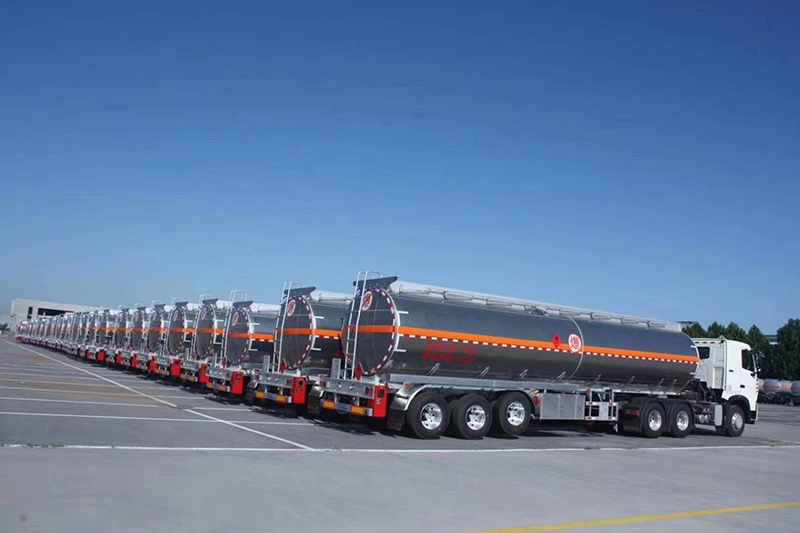

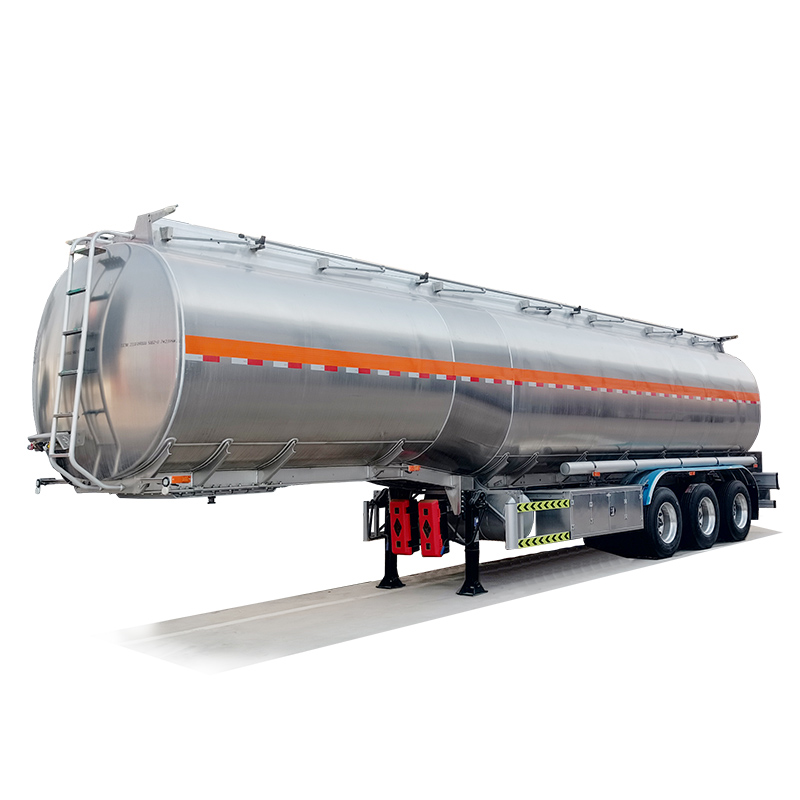

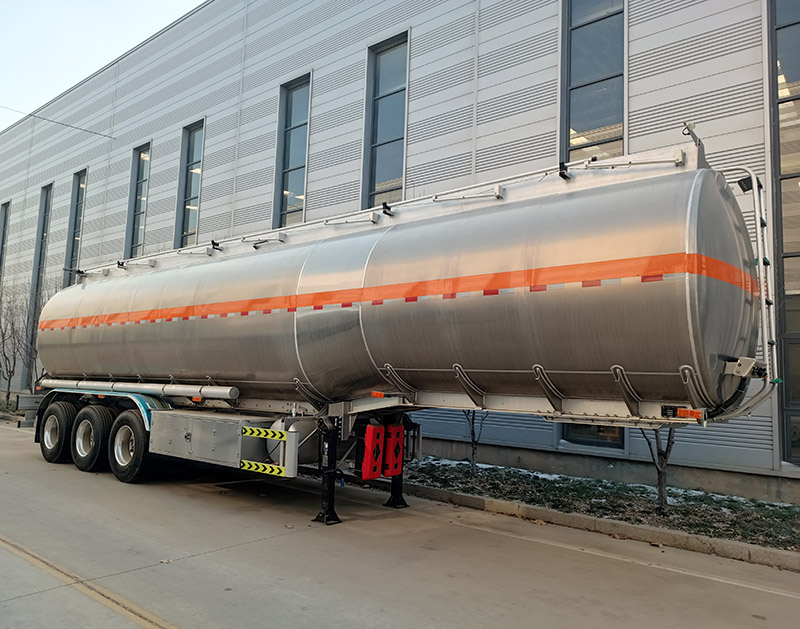

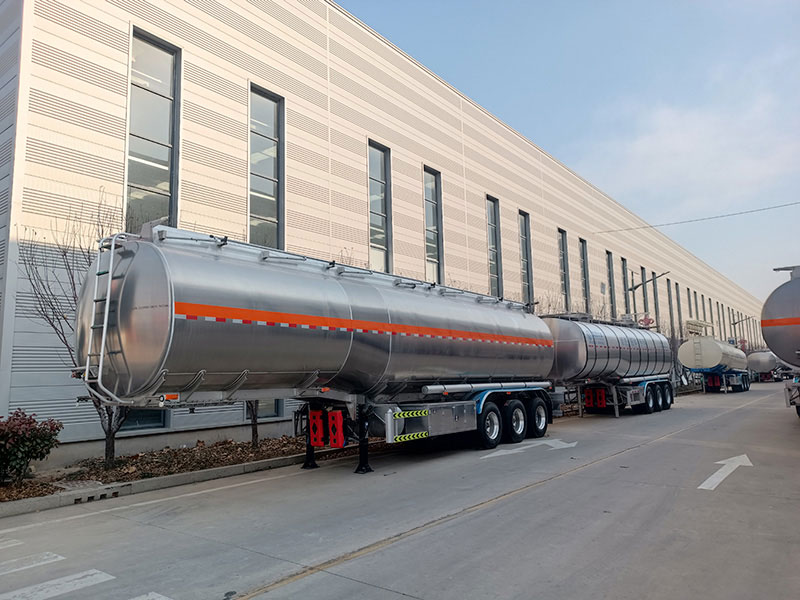

Axles 45000Liters Aluminum Alloy Fuel Tanker Trailer

1. Curb Weight of aluminum material is much lighter than Carton Steel, saving energy and good for environment.
2. Re-Use value: Aluminum can be recycled many times, recovery value is more than 85%.
3. Longer cycle life: Aluminum alloy life time is 15-20years (Carton Steel is 7-10year). It is easy to wash and has lower repairing cost.

4. Safety factors: good electrical conductivity and energy absorption. There is little static gathered on the trailer, not easy spark.

5. Lighter Curb weight and low center of gravity.

6. Good corrosion resistance, Anodizing handling, Oxide surface film.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Details:3 Axles 45000Liters Aluminum Alloy Fuel Tanker Trailer

--- Where we use Aluminum Tanker Trailer？

Aluminum tanker trailer is using for especially Fuel, Diesel, Jet A1, Oil, Crude Oil transportation which companies want less weight of tanker trailers.

--- What about Axles,Tyres and other components..?

FUWA, BPW, JNE axles with single or double tyre 385/65 R22,5, 315/80R22.5 dimensions.

Axles 45000Liters Aluminum Alloy Fuel Tanker Trailer

Specification:

Model: JNE9490TK

Tyre Specifications: 12R22.5, 315/80R22.5

No. Of the Tyres: 12 pcs

Axle: 13 Ton capacity

No. Of the Axles: 3 pcs

Landing Gear: 28 ton capacity Fuwa with static capacity of 80T

Suspension: Heavy duty mechanic suspension with 10 pcs leaf spring

King Pin: 2' and 3.5' inter-changeable traction pin

Material of the Main Beam: Automatic submerged arc welded

Main beams Q345B/ST52-3

Brake System: Automatic air brakes, Double pipe line air brake, front axle is 30 air chamber, rear two axle is 30/30 air chamber.

Color: As the buyers' request

Accessory: One tool box, two spare tire carriers, two fire extinguishers

Electrical System: 24V, 7core socket, lights according to European standards.

Axles 45000Liters Aluminum Alloy Fuel Tanker Trailer

Optional parts for the Aluminum Tanker Trailer:
---The tank volume is 30-60CBM,

---Tank body can be mirror polishing optional;

---The tank body material is model AL5083,AL5182, AL5454 optional;
---The tank body is one compartment or multi compartment optional;
---The suspension is air, mechanic and bogie suspension type optional.

Axles 45000Liters Aluminum Alloy Fuel Tanker Trailer
