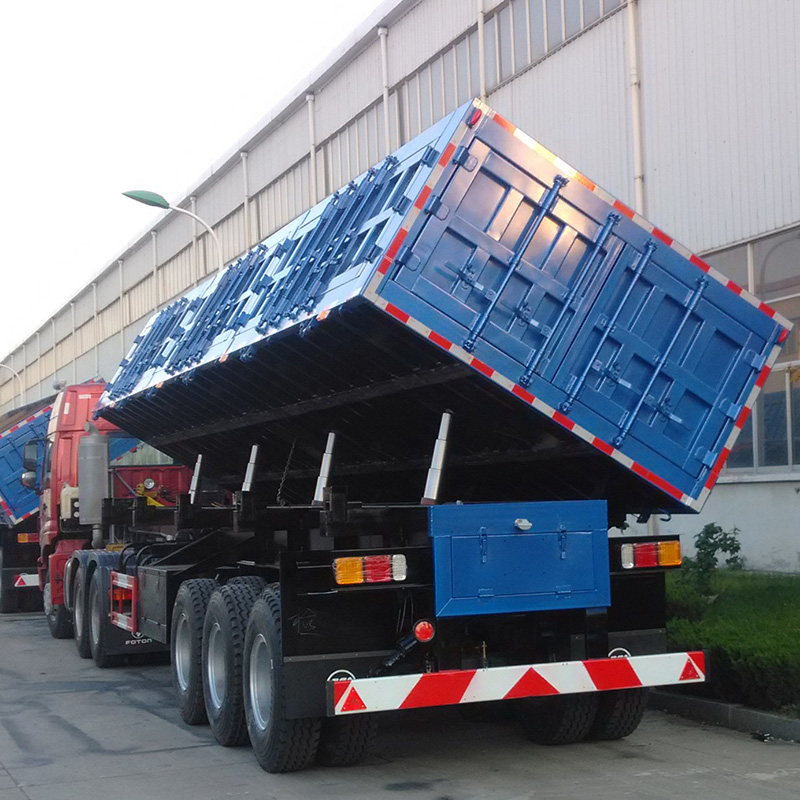

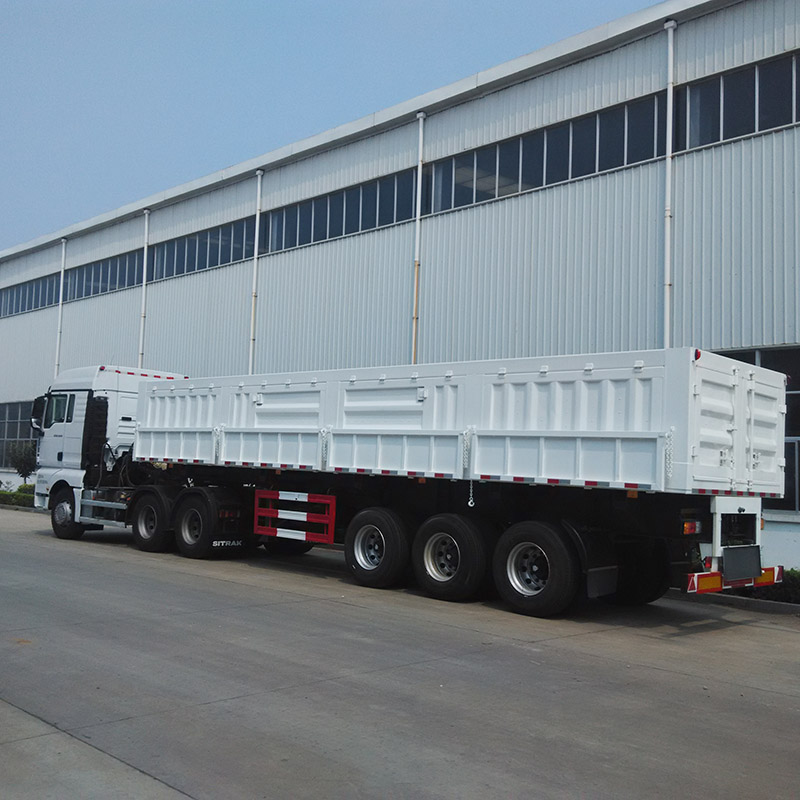

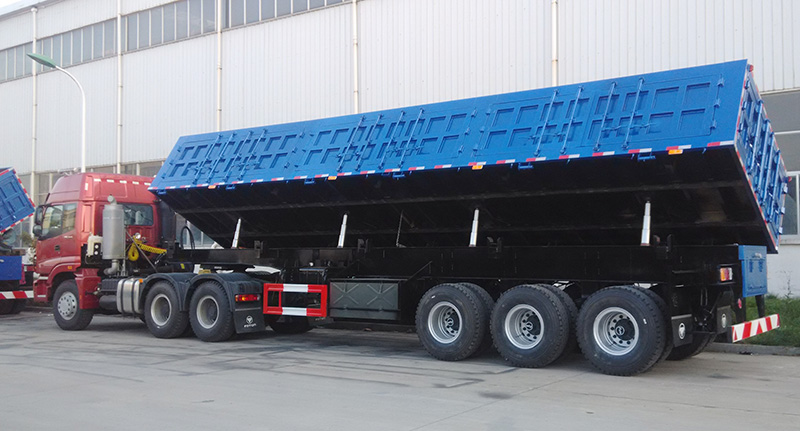

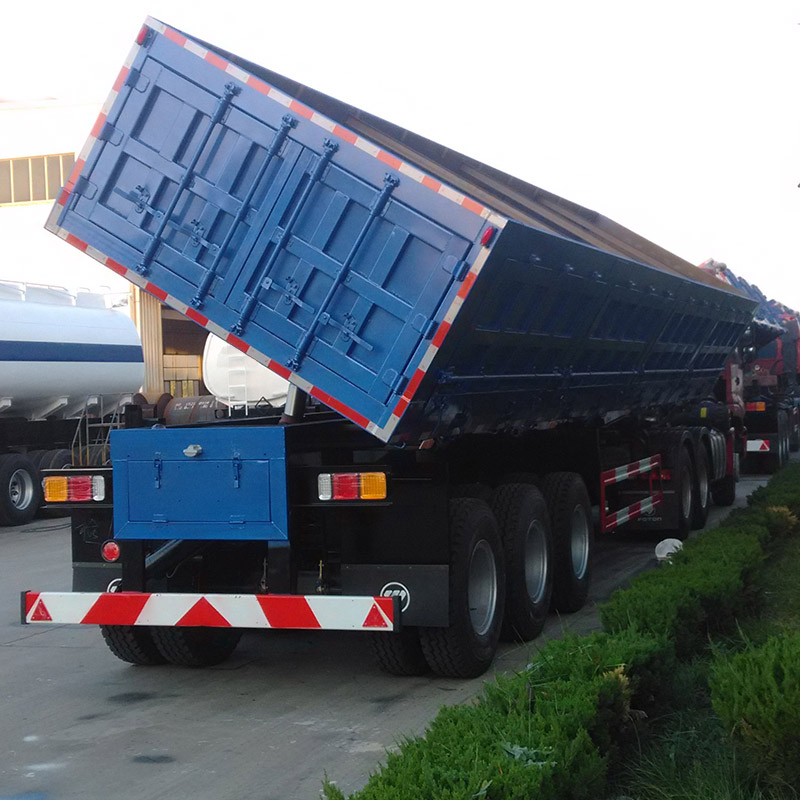

3-Axle Side Tipper Trailer

A side tipper trailer has funtion of lifting cargo body towards left side or right side of the cargo body and then offloading the goods. we can get fast and durable discharging operation by using of side tipper trailer. Bucause of long cargo body, a side tipper trailer can load more than rear tipper trailer.

Hydraulic cylinders are installed under floor of the cargo body or at front and rear of the cargo body.

Side Tipper Trailer Specification:

Overall Dimension 13000mmx2500mmx2900mm

Box Body Dimension 12800mmx2300mmx1100mm

Curb Weight 11500kg

Pay Load 60000kg

Box Body: Floor steel sheet 6mm, side wall steel sheet 4mm

Front Overhang 1460mm

Rear Overhang 1930mm

Wheel base 6800mm+1305mm+1305mm

Track 1840mm

Loading surface height 1790mm

Running Gear

Suspension: Three axle leaf spring suspension with equalizer beam

Tyre: 12.00R20

Axle: 16ton axle, 3 pcs

Brakes: Dual lines pneumatic brake system, 30/30+30 chambers, air-actuated

Main Beam: I shape, Mild Alloy Q345B by Automatic submerged arc welding.

Tipper system: Left side or right side tipping

King pin: 90# (3.5'') bolted on plate

Landing Gear: Lift capacity 28Ton

Electrical & Paint

Lights & Reflectors Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

Wiring 24V, 6 lines

Air/Elec. Connector ISO standard air connector, 24V 7 pin plug socket

Paint: Color upon request

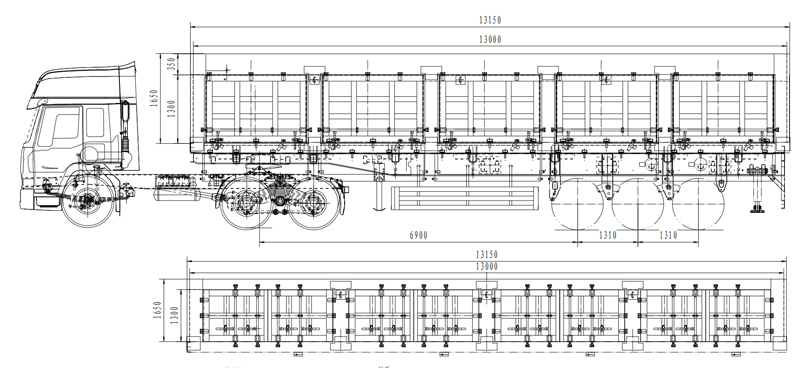

Side Tipping Trailer Drawing

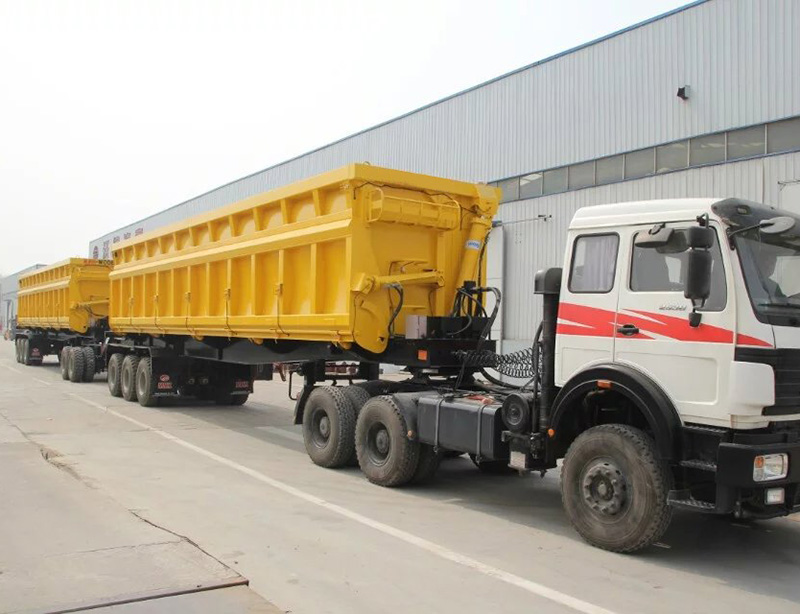

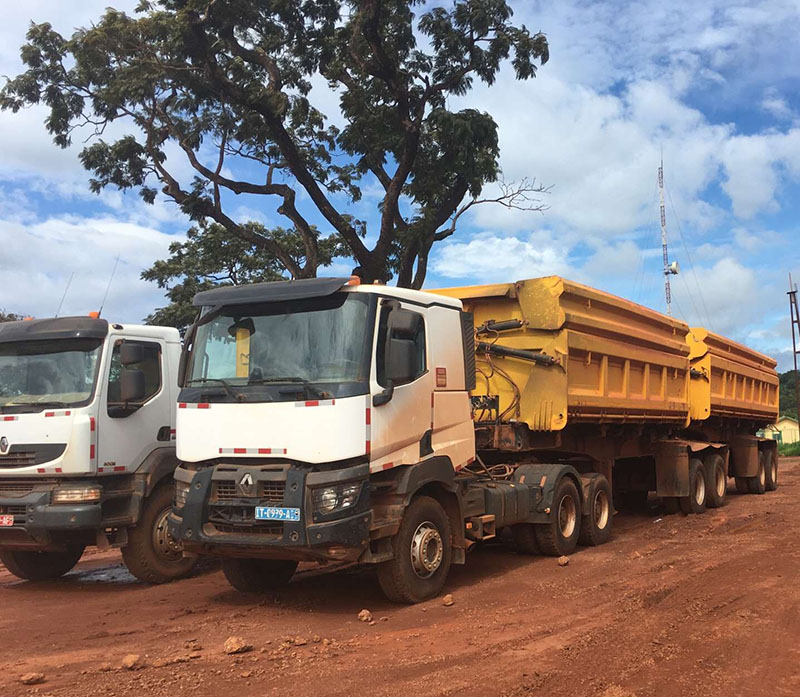

Side Tipper Trailer at Site:
