3-Axle Tipper Tailer 60 Ton

Heavy duty chassis brings you safely even in difficult terrains.
Designed for abrasive bulk material such as sand, gravel, rock, and other construction materials.
Long service life through low-wear tipper bodies.
High working speeds through high-performance hydraulics.
Powerful, Durable and Efficient hydraulic lifting system.

Contact Now E-Mail Telephone WhatsApp

Product Details

Tipper trailers are made up of trailer chassis, cargo body and hydraulic lifting system. Hydraulic lifting system is powered by a hydraulic oil pump located at tractor truck, it lift the cargo body and discharge goods fast and conveniently. We usually use them in the mining, construction and transport industry. They are used to transport sand, gravel, construction debris, etc. Tipper trailers are also known as dump semi trailers or tipping semi trailers. They are connected to a tractor truck for transportation of goods.

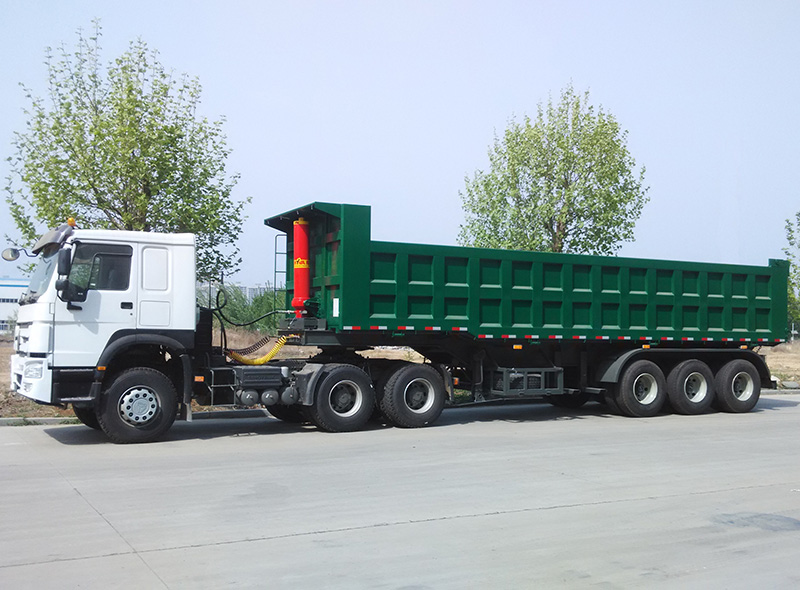

tipper trailer

Heavy duty design for chassis of tipping trailer brings you safely even in difficult terrains.

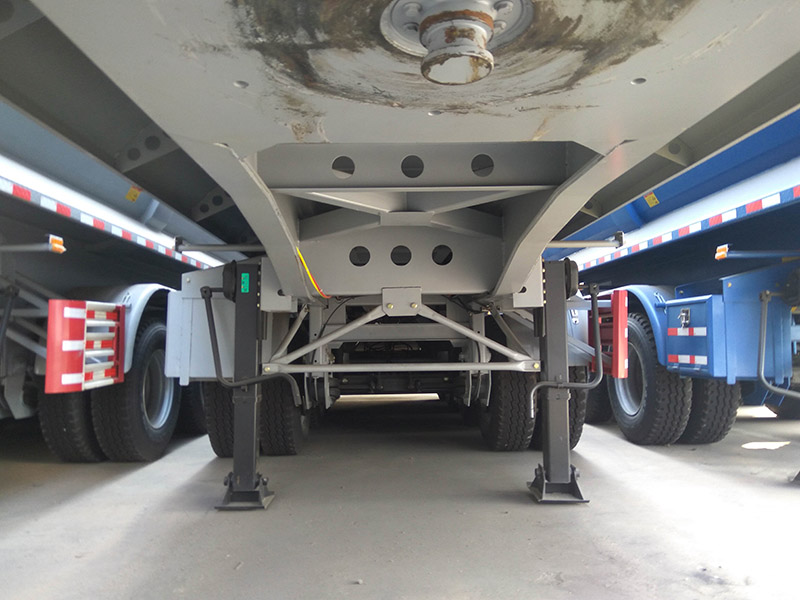

tipping trailer frame

Powerful, durable and efficient hydraulic lift system

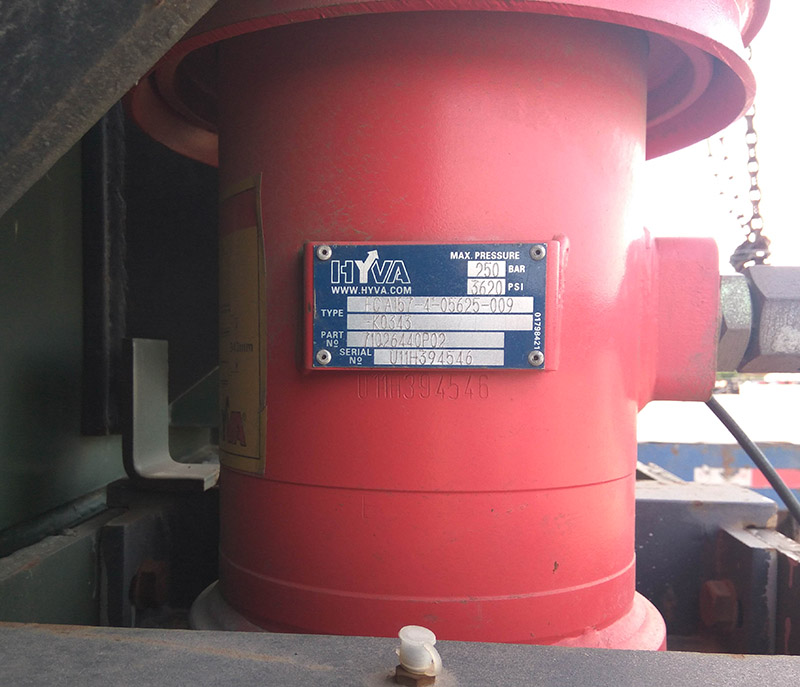

Hydraulic Cylinder

The tipper body of a tipper semi-trailer is designed for the toughest requirements.

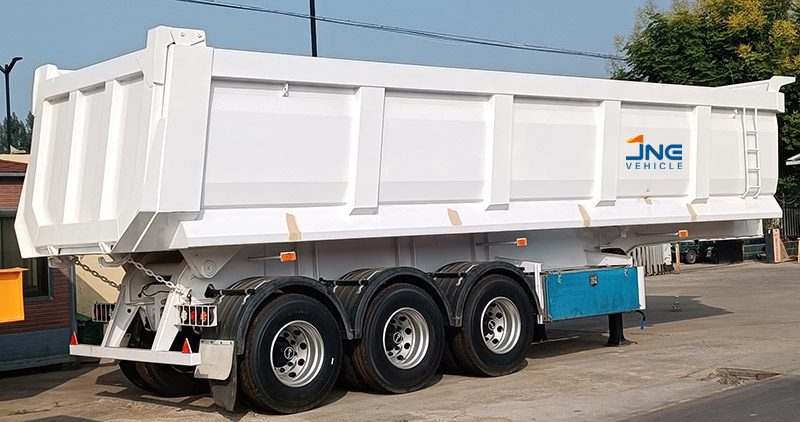

Tipping Semi Trailer

Specification

Dimension
Length	10,300 mm
Width	2,650 mm (including mud guard)
Height	3,850mm
King Pin Location	1200mm from the front face of the front bolster
Wheelbase	4,510mm+1,310mm+1,310mm+1,310mm
Landing Gear location	2,520mm behind the king pin location
Fifth wheel (King Pin) Height	Approx 1,290mm with the chassis level
Capacity (Tolerance 0~-3%)	38 CBM
Body
Side wall	6.0mm
Floor	8.0mm
Inner dimension	9,500mmx2,500mmx1,700mm
Material	High tensile wear-resistant steel choose by factory
Weight
Tare Weight (Tolerance 0~-4%)	12,500kg
Max Payload	52,000kg
Gross Vehicle Weight	64,500 kg
Configuration
King Pin	3.5" bolted king pin.
Landing Gear	JOST or other famous brand
Suspension	American type mechanical suspension with equalizers 8/10 leaf spring
Axles	16 tons capacity x 3
Rims	8.0-20, equip 12 per chassis
Tyres	Double Coin or Triangle, type: 13R22.5, equip 12 per chassis
Brake System	Dual air brake system, WABCO relay valve
Brake chamber	Type 30/30 on the all axles.
Electrical System	24volt lighting system, 7-way receptacle, ISO standard.
Hydraulic system	Brand & Type: HYVA, with all the hydraulic kits including the oil tanker, Valve, connecting pipe.
