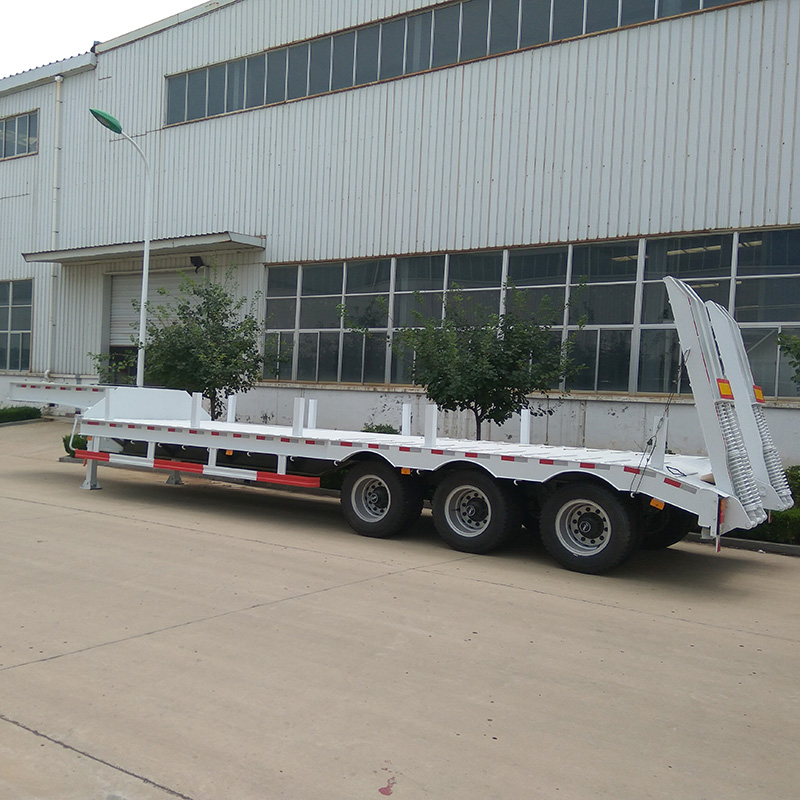

Three-axle Lowbed Semi-trailer 80 ton

Lowbed Trailer Description

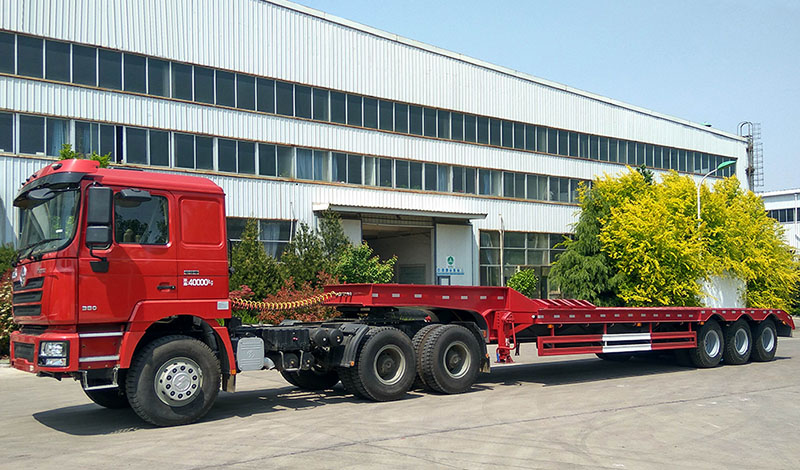

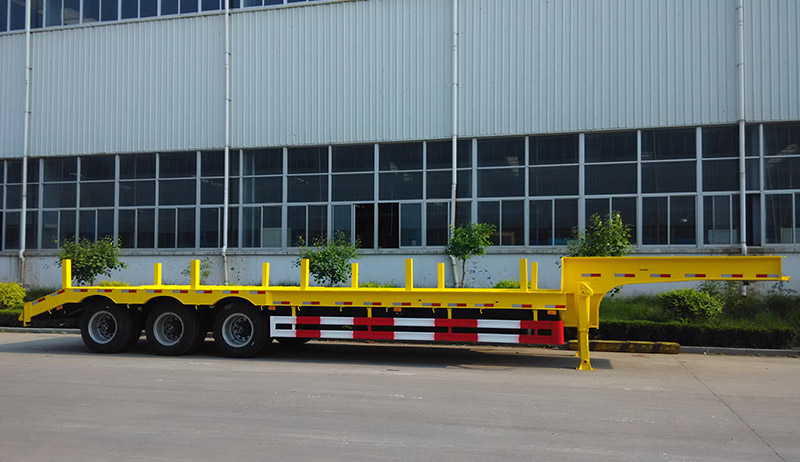

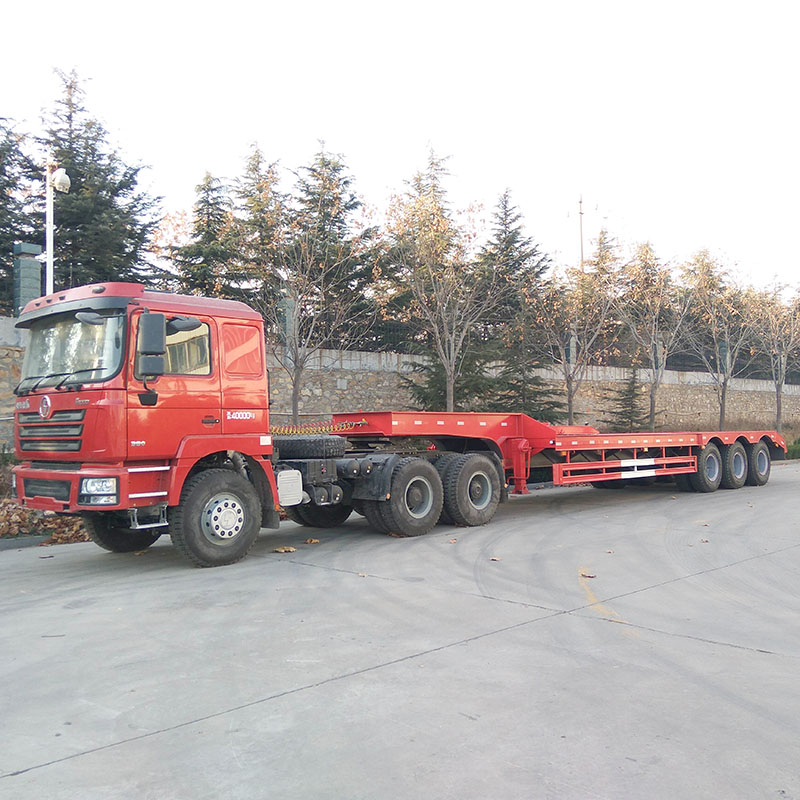

Lowbed Semi-Trailer, also known as low bed trailer, lowboy, low loader, has low loading platform for transport of heavy duty road machinery, mining machinery, bulldozers, excavators, loaders and special vehicles. It is equipped with ramps for loading cargo or machinery at rear or front of trailer. Rear ramps can be spring power or hydraulic power lift for easy operation. There is detachable gooseneck design or foldable gooseneck design for front ramps, and the machines or equipment is loaded from front of low bed semi-trailer.

Lowbed Trailer Details

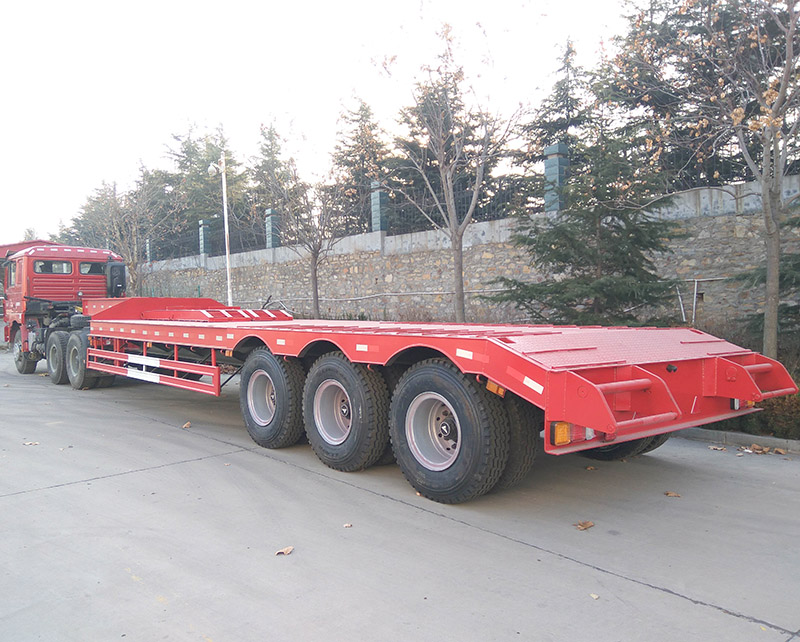

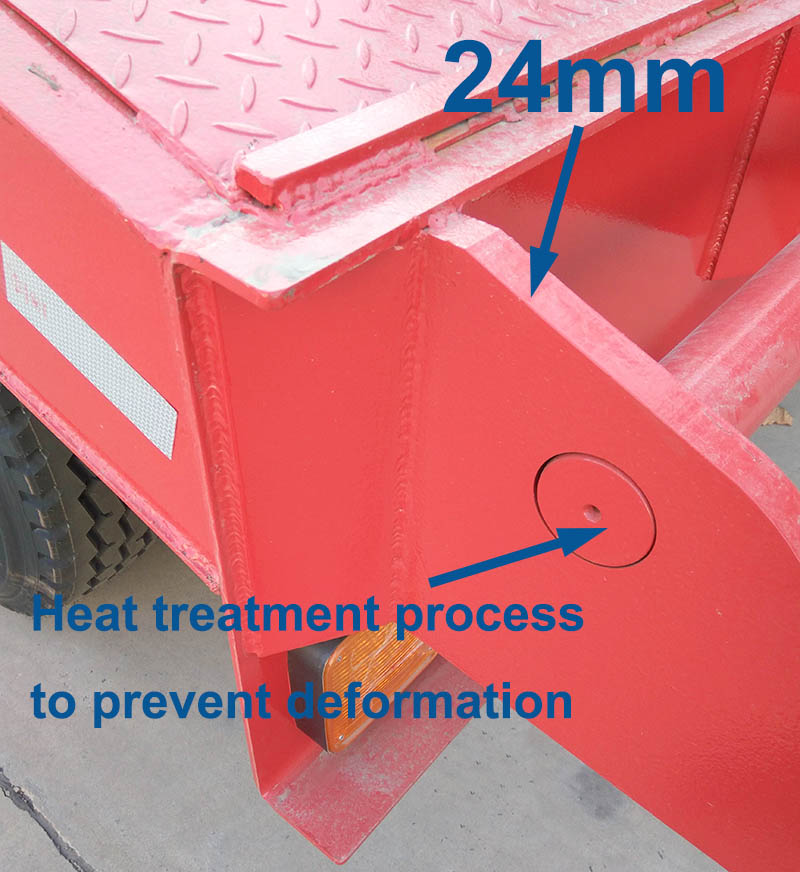

It is equipped with ramps at tail of platform for easy loading and unloading machinery, mining trucks and other equipments.

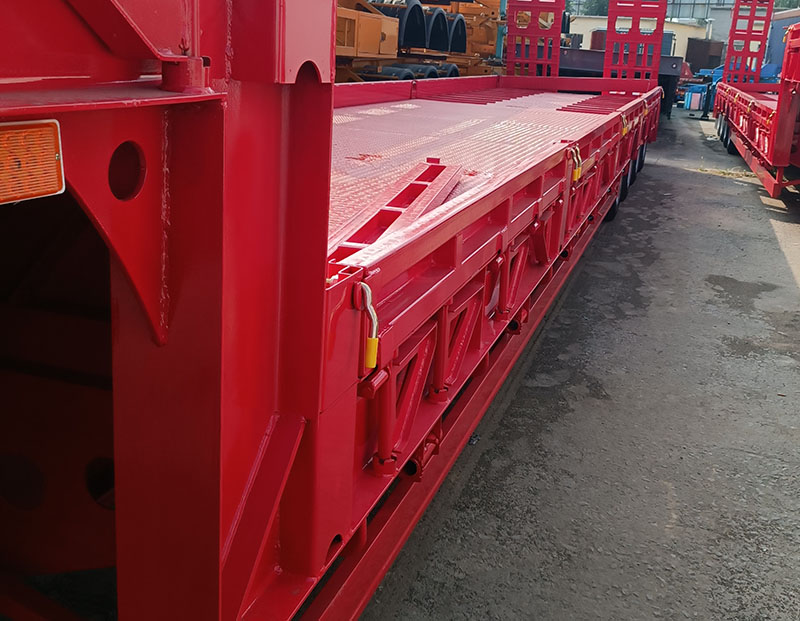

The width is 3000mm to 3500mm, also can be extended by outriggers.

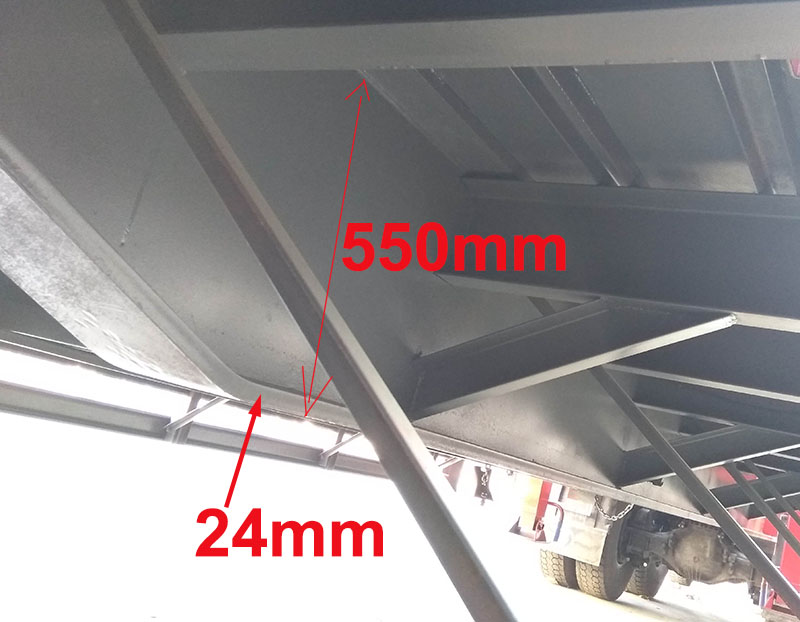

Extra heavy duty main beam: height 550mm, Flange thickness 24mm.

Lowbed Trailer Specification

Tire size 10.00R20, 11.00R20 or 12.00R20 which has big loading capacity.

The gooseneck is strengthened by extra steel plate beam.

Kingpin is 90mm which has more towing capacity than 50mm.

Axle is 13 ton 16ton or 20 ton capacity.

Rear ramps can be spring power or hydraulic power.

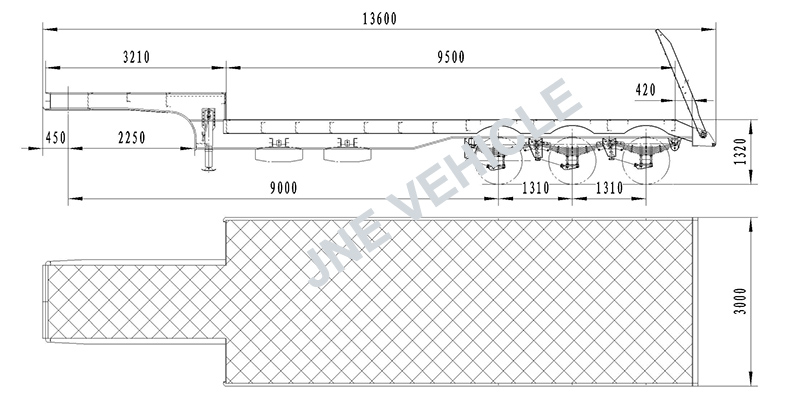

JNE Lowbed Trailer Drawing

Please contact us for more specification, pictures and video. We would like to quote according to your requirements or customized specification.
