Three-Axle Lowbed Semi-Trailer

3 Axle Lowbed Trailer Description:

JNE Vehicle provides a wide series of low bed trailer (lowboy trailer), which can meet different road transportation requirements.

What is low bed trailer:

Low bed trailer is a kind of semi-trailer that has a super low cargo platform. And trailer axle numbers could be 2-4 axles. It is specialized for transportation of crawler crane, excavator, crawler loader, bulldozer, railroad equipment, and other equipment. Benefit from the low bed design, the trailer can go through bridge arc and tunnel, with lower COG(center of gravity) of cargo, and easy to load equipment from rear ramps.

Specifications of Low bed trailer:

Loading capacity: 30-160 tons

Length and width dimensions: 9m-17m, customized available

Heavy duty and extra durability designed I beam (main beam)

High tensile steel Q345B(or above) welded by automatic submerged-arc process

Steel thickness of main beam: Top and bottom flange 18-26mm, middle flange 8-16mm

Axle numbers: 2 axles, 3 axles, 4 axles

Axle brands: BPW, FUWA or JNE brand axle

Option for more axles than 4 if choose the hydraulic axle

Suspension: mechanical, hydraulic or air suspension

Leaf spring: 8 pieces or more

Ramp: mechanical spring or hydraulic lifting ramp

Traction pin:  50# or 90# bolt-in

Braking system: WABCO relay valve, T30/30 spring brake chamber, 45L air tank

Lights: 24 volts, 7 pins socket. Traffic warning signs

Heavy-duty landing gear: two speeds, manual operating

Painting: complete chassis sandblasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories: one standard toolbox

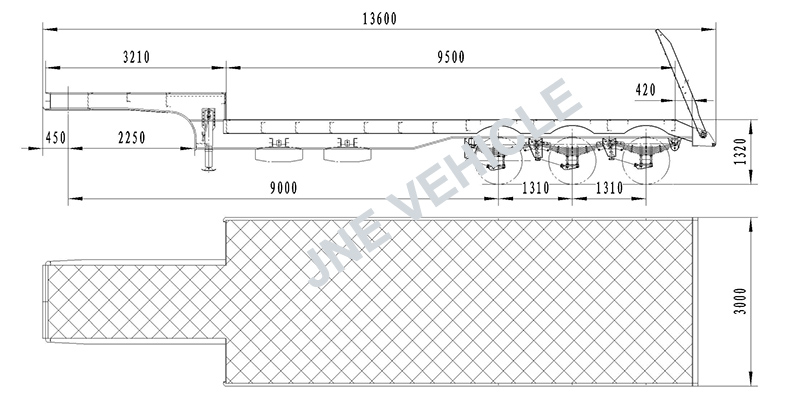

Lowbed Trailer Drawing:

The length, width and height of low bed trailer could be customized according to customer's machines, equipments or other requirements.
