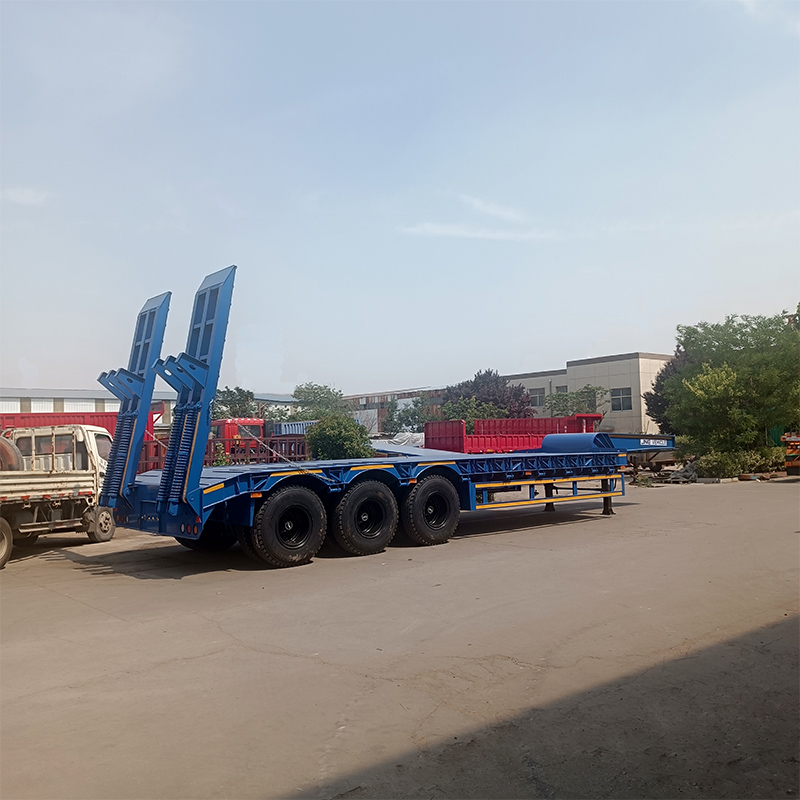

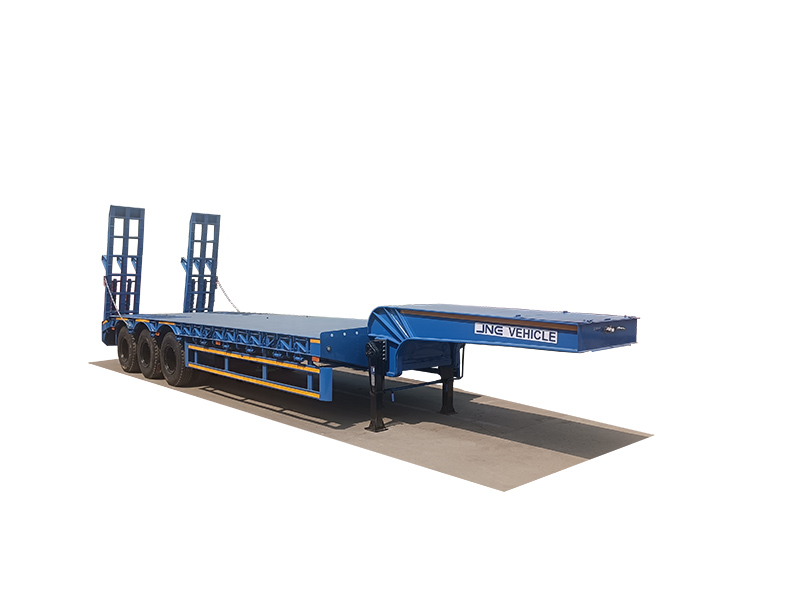

JNE 60 Ton Lowbed Trailer

As a heavy transportation tool, the 60 ton flatbed semi-trailer has significant advantages in the field of logistics transportation. The following is a detailed explanation of its advantages:

1. Strong load-bearing capacity:

 The 60 ton low flatbed semi-trailer is designed to be sturdy and adopts a high-strength alloy steel box section joint structure, which has excellent load-bearing performance. The frame of 0 is a through beam structure, with straight or movable goose neck longitudinal beams that can withstand large weights and meet the transportation needs of bulk goods

2. Strong adaptability:

The low flatbed semi-trailer can adapt to various types of goods, including large equipment, heavy machinery, steel, etc. Its flatbed design can also adapt to goods of different shapes and sizes, making loading more flexible.

 can be made into a pull-out design according to customer requirements, with a curved center to accommodate large diameter circular objects.

5. High safety: The 60 ton low flatbed semi-trailer pays attention to safety in its design, such as adopting a reasonable axle layout, widening tire spacing, and improving frame rigidity. At the same time, it is equipped with a comprehensive braking system and steering system to ensure stability and safety during driving.

6. Environmental protection and energy conservation:

This model usually adopts a lightweight design, reducing the vehicle's weight, lowering fuel consumption and emissions.

This not only meets environmental requirements, but also helps reduce operating costs.

Specification：

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 60-80T

Axle: 13T/16T, FUWA / BPW

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

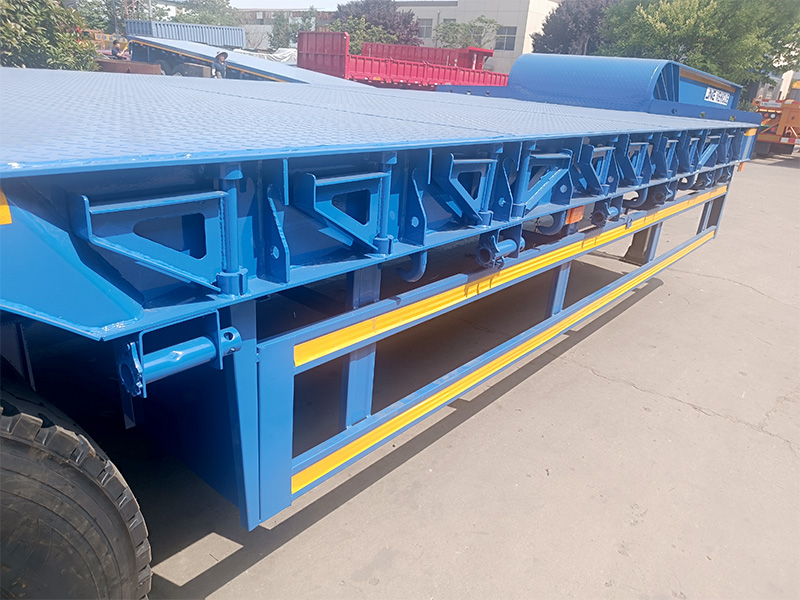

Bottom Platform: 5mm thick checkered plate

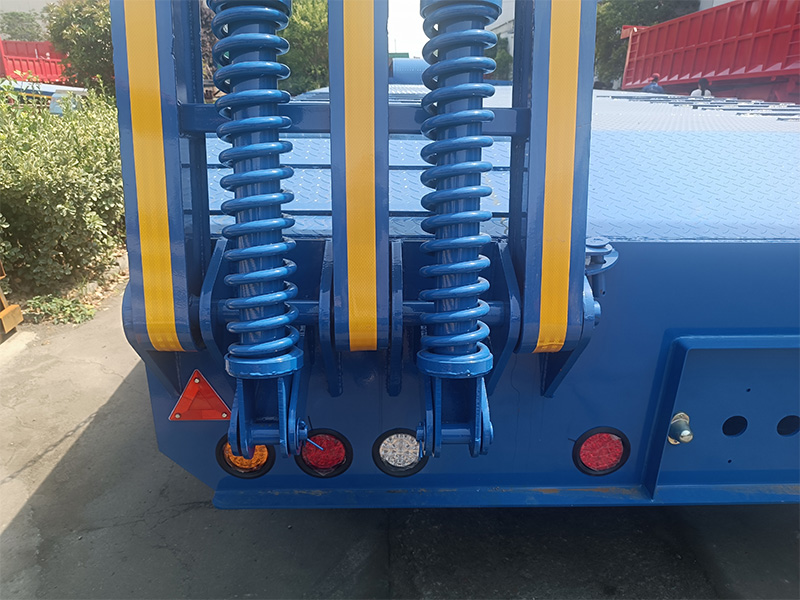

Ramp: Spring ramp

Light: LED light (specially intended for oversea markets)

The low flatbed semi-trailer can be modified and adjusted according to the different needs of the goods, such as adding protective barriers, weekly fixed installation, etc. This highly customizable feature enables the vehicle to meet various transportation needs, improving the flexibility and efficiency of transportation.
