Three-axle 40 Ton Flatbed Semi-Trailer for Container Transport

1. Design: For different load capacity and different road condition, we have different designs to ensure the strength and cost-effectiveness of the trailer.

2. Metal structure and welding: Top-class carbon steel plate for structure. Automatic welded structural and assembly components.

3. Surface treatment: Adopting polyurethane painting or powder spraying process for painting, and will not come off after 5 years.

4. Famous brand parts and assemblies: High performance axles, high strength and impact resistance suspension, and reliable dual circuit air brake with quick release valve and quick response of wheel cylinder ensures safe on-road and off-road operation.

Contact Now E-Mail Telephone WhatsApp

Product Details

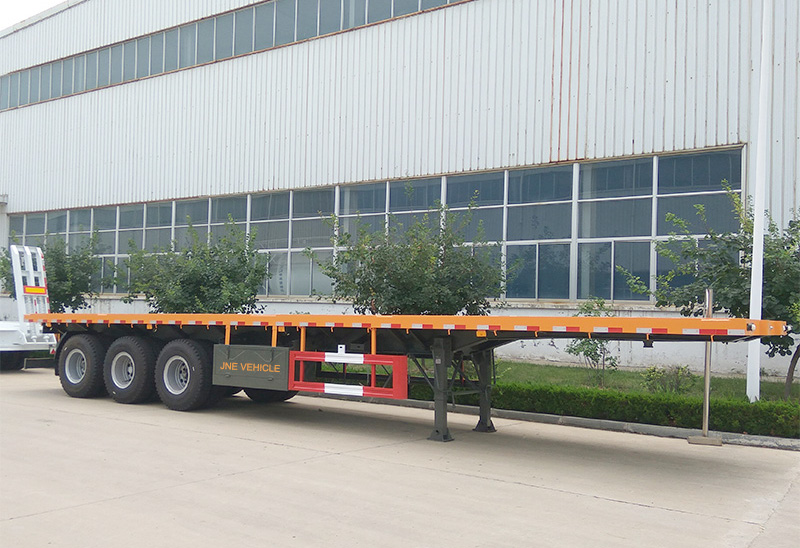

Three-axle Flatbed Container Trailer

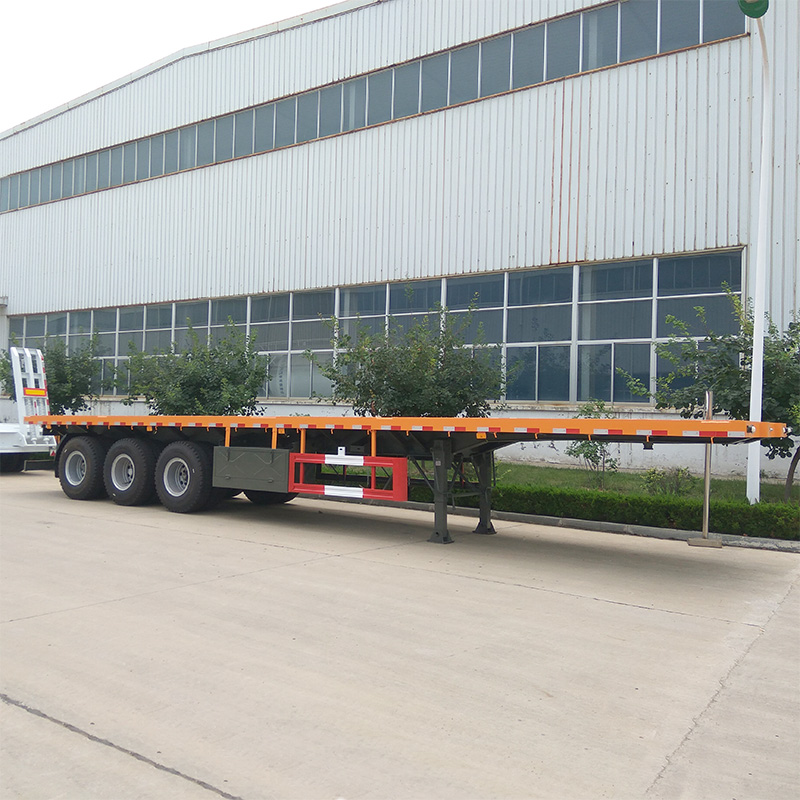

Three-axle Flatbed Trailer

Product Details:

JNE flatbed trailer is usually used to transport 20ft or 40ft containers, and they are mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport.

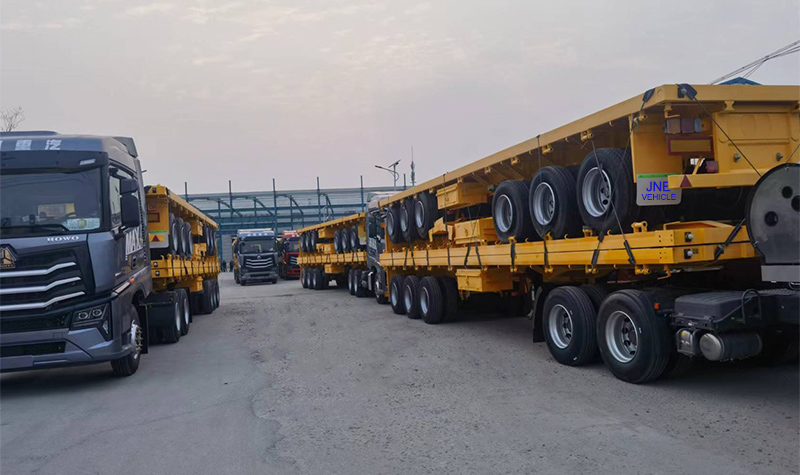

Three-axle Flatbed Trailer Loading

JNE flatbed semi trailer can be customized according to customer needs.

Different options: 2 axles, 3 axles, 4 axles.

30T, 40T, 50T, 60T.

Airbag suspension, steel leaf spring suspension.

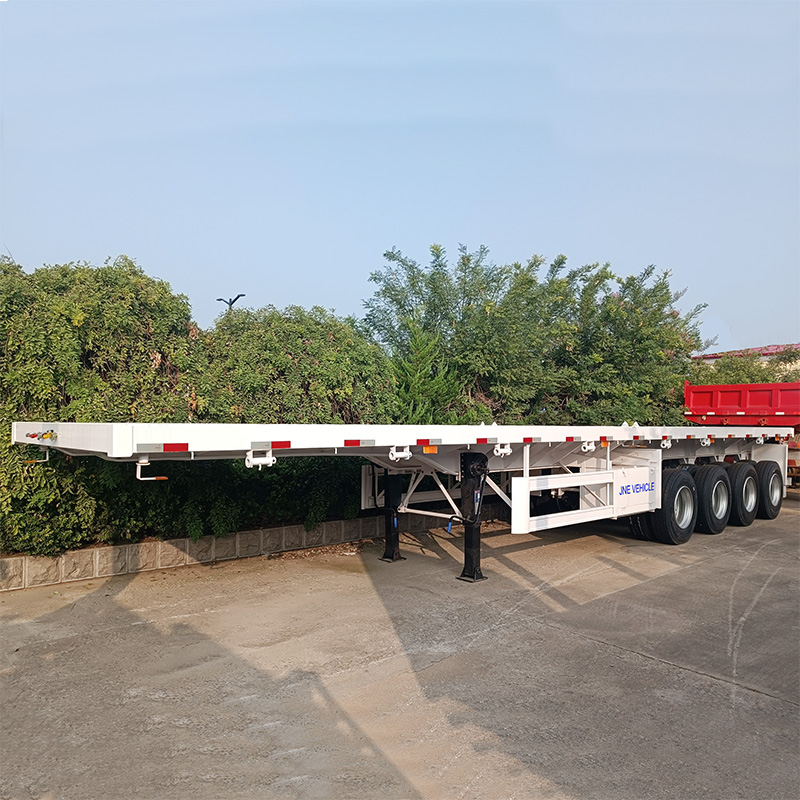

Four-axle Flatbed Trailer

Specification:

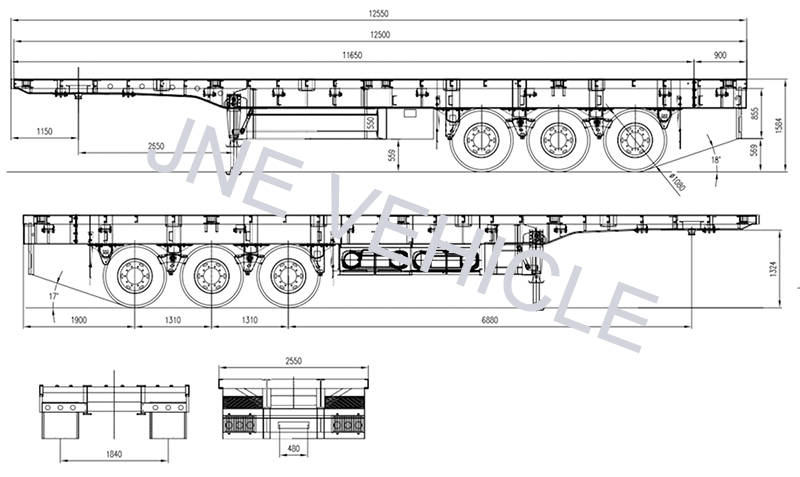

1. Dimension:
Length:	12,500mm
Width:	2,550mm
Height:	1,600@unload
King Pin Location:	1,150mm from the front face of the front bolster.
Landing Gear Position:	2,520mm from the king pin.
Axle Spacer:	6,880mm+1,310mm+1,310mm
King Pin Height:	Approx 1,330mm with the chassis level
2. Weight:
Tare Weight:	7,200kg
Max. Payload:	40,000kg
Gross Vehicle Weight:	47,200kg
3. Steel Structure:
Frame:	The frame is made up of main beam, cross beam, side beam and steel plate.
Material:	High strength low alloy steel Q345B is used for welded I-beam and Q235 is used for the fabricated parts
Main beam:	“I” shape, welded by automatic submerged arc welding. Material is mild alloy Q345B, height 500mm.
Side beam:	Q235B channel beam, height 160mm.
Floor:	Checkered sheet, thickness 3mm.
4. Assemblies
King Pin:	2’’ (50#) bolted king pin.
Landing Gear:	2 speed road side winding with sand shoe. Lift capacity 28ton.
Suspension:	Heavy duty under mount tri-axle suspension with equalizers 10-leaf spring.
Axle:	Square axle, 13 tons capacity each, 3 axles. Huajun brand.
Tyre:	315/80R22.5 tubeless tyre, 12 pcs. Linglong brand.
Container locks:	12 twist locks, for 1x40ft, 2x20ft or 1x20ft container.
Brake System:	Dual air brake system.
Brake Chamber:	Type 30/30 on the rear two axles, type 30 on the front axle.
Electrical System:	24 volt lighting system with modular wiring harness, 7 way ISO receptacle in front of the front bolster.
Light System:	standard
Side Guard:	standard
Tool Box:	Equipped one set
5. Painting:	Color according to request.
