Lowbed Semi Trailer 80 Ton

Four Axle Lowbed Trailer 80 Ton Description:

JNE Vehicle provides a wide series of low bed trailer, which can meet different road transportation requirements.

Two Axle Lowbed Trailer 30 Ton

Three Axle Lowbed Trailer 40 Ton

Three Axle Lowbed Trailer 60 Ton

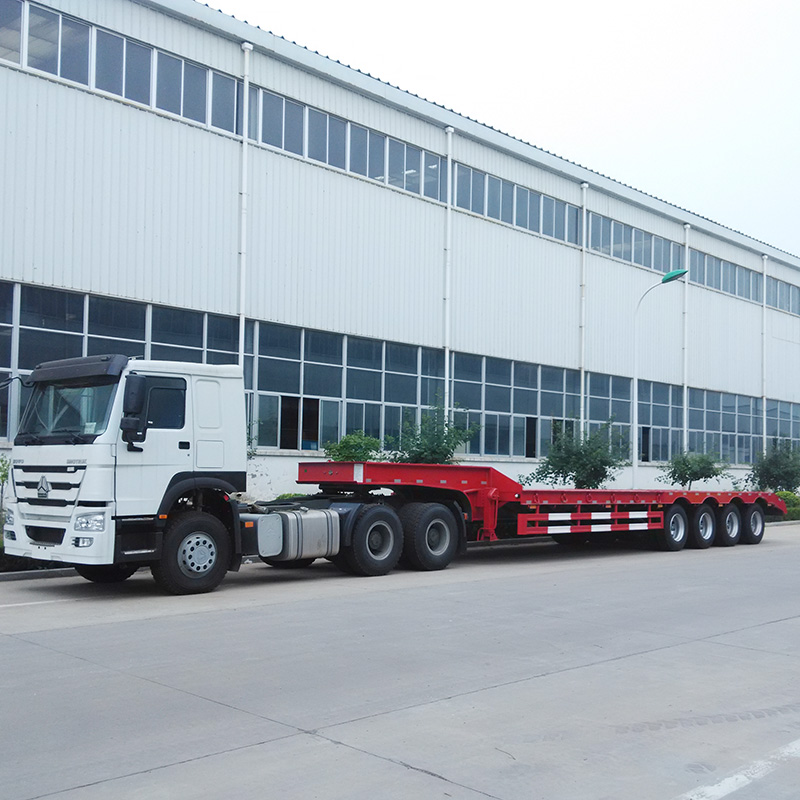

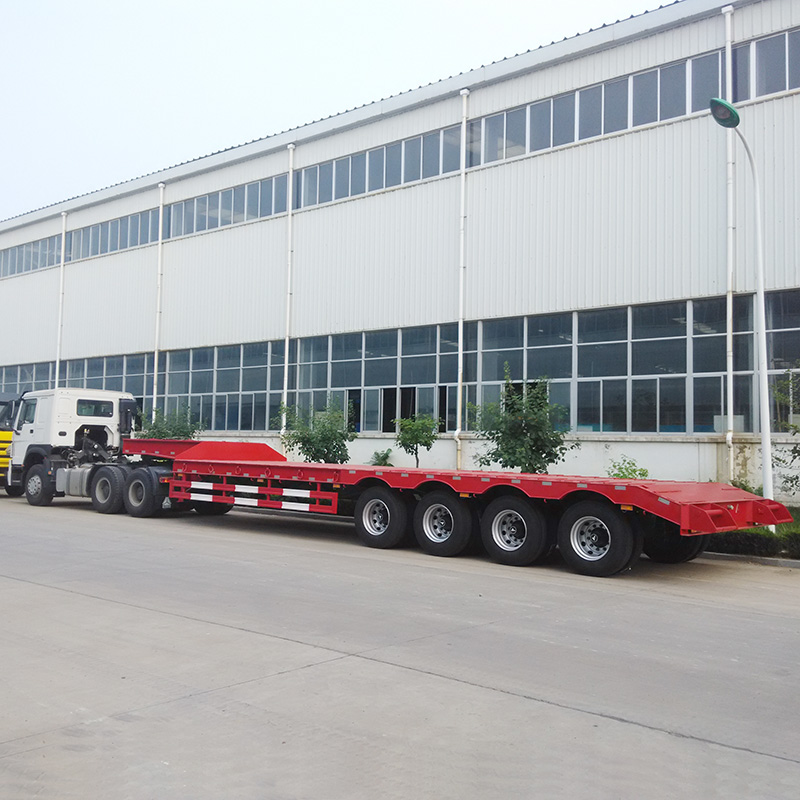

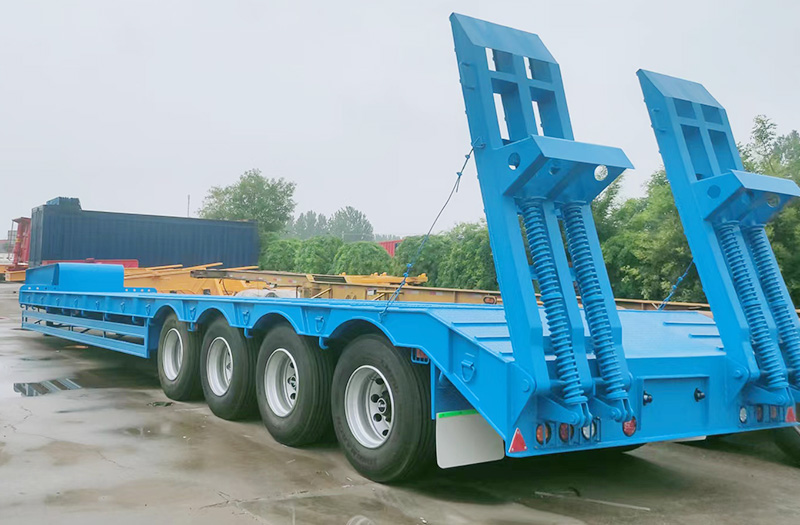

Four Axle Lowbed Trailer 80 Ton

Four Axle Lowbed Trailer 100 Ton

Multi Axle Lowbed Trailer more than 120 Ton

What is low bed trailer:

Low bed trailer is a kind of semi-trailer that has a super low cargo platform. And trailer axle numbers could be 2-5 axles. It is specialized for transportation of wheel loader, excavator, crawler crane, crawler loader, bulldozer, construction equipment, and other equipments. Benefit from the low bed design, it is easy to load equipment from rear ramps.

Specifications of Lowboy:

Loading capacity: 80 tons

Length and width dimensions: 12m-17m, customized available

Beam: High tensile steel Q345B(or above) welded by automatic submerged-arc process

Structure: Heavy duty and extra durability designed (main beam, cross beam, side beam)

Steel thickness of main beam: Top and bottom flange 18-26mm, middle flange 10-16mm

Axle numbers: 4 axles

Axle brands: BPW, FUWA

Suspension: mechanical leaf spring

Leaf spring: 8 pieces or more

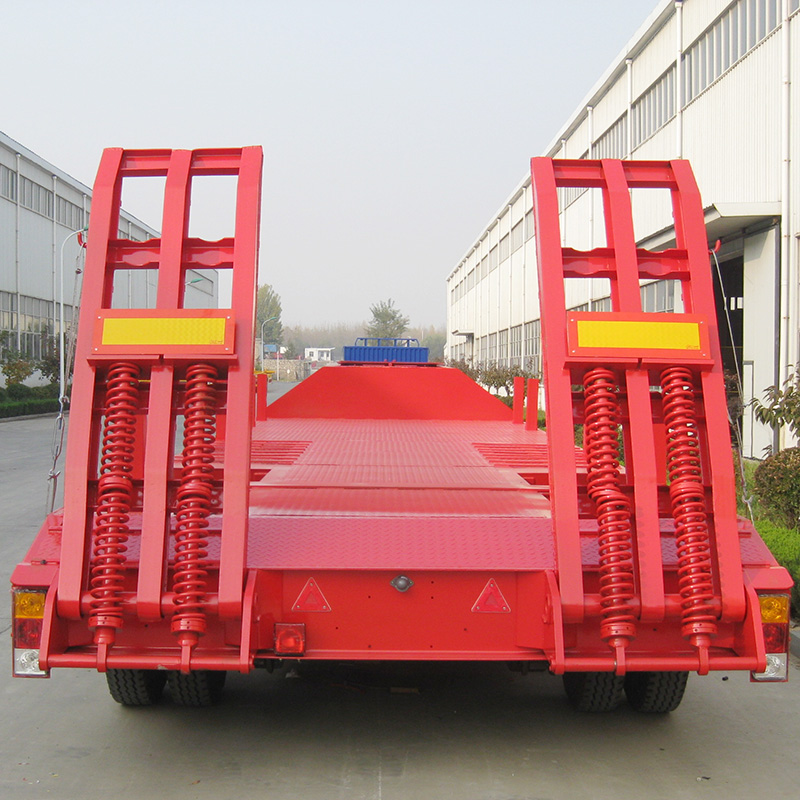

Ramp: mechanical spring or hydraulic lifting ramp

Traction pin: 2’’ or 3.5’’ bolt-in

Braking system: WABCO relay valve, T30/30 spring brake chamber,

Lights: 24 volts, 7 pins socket. Traffic warning signs

Heavy-duty landing gear: two speeds, manual operating

Painting: complete chassis sandblasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories: one standard toolbox

Please contact us for detailed specification, more pictures and quotation.
