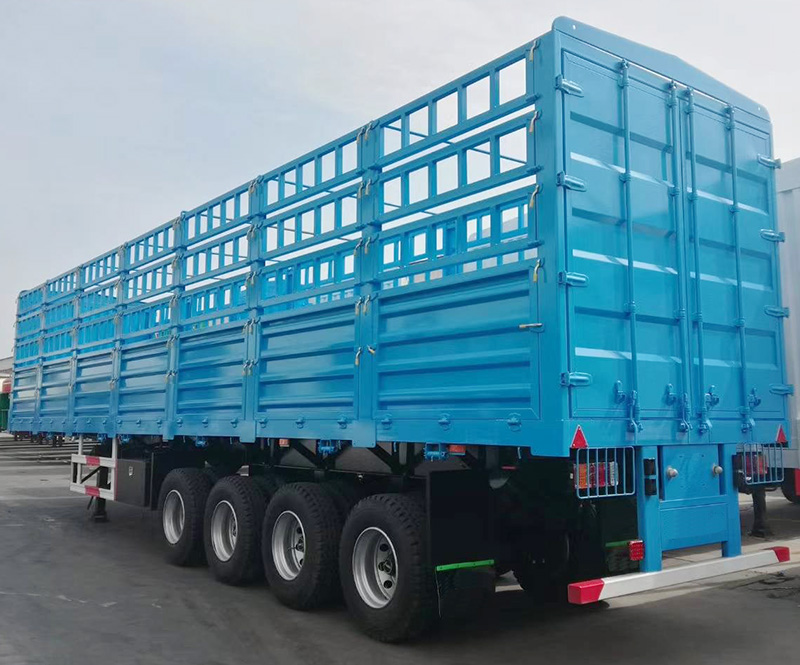

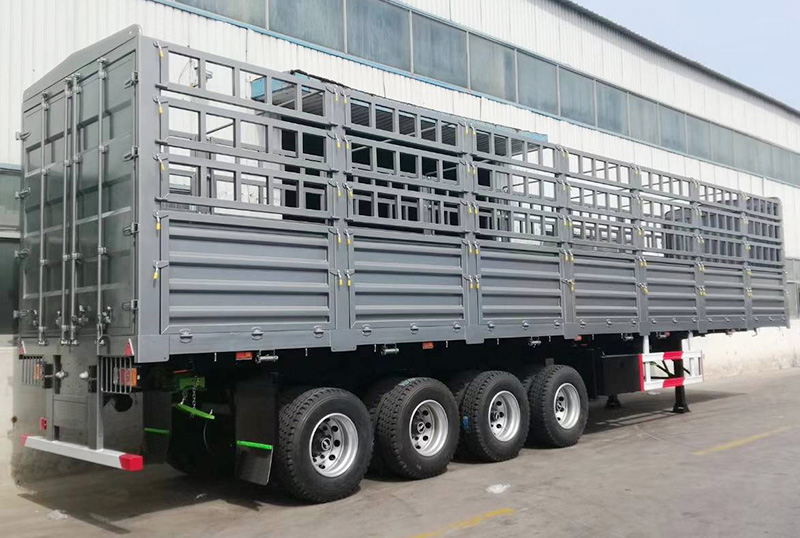

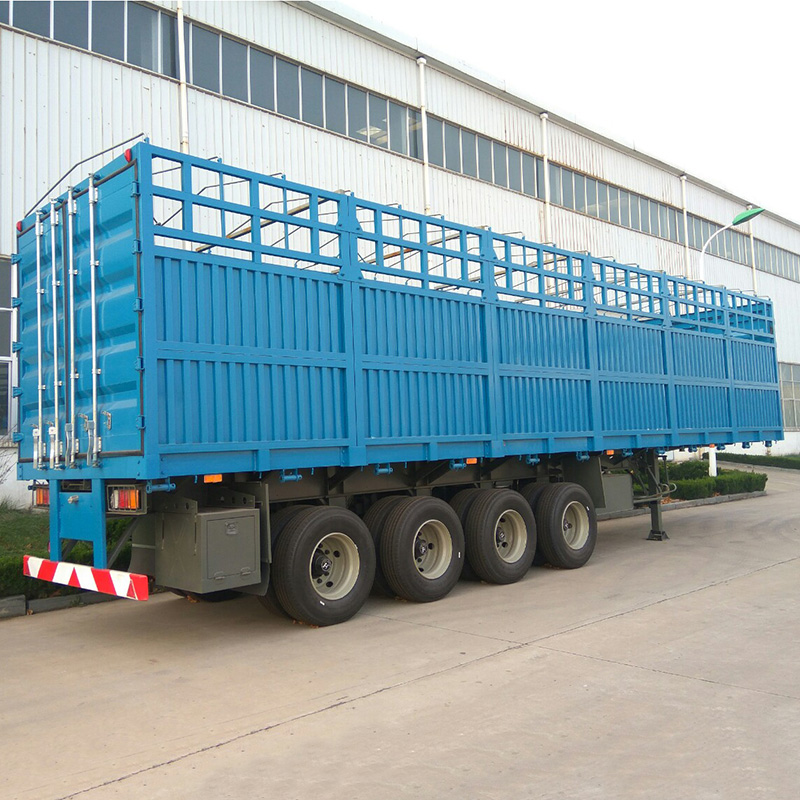

4 Axle 80 Ton Fence Semi Trailer

A 4-axle fence semi trailer is also known as cage trailer, which is for long distance transport of bulk cargo or animals. Fence structure has light weight and good ventilation.

Specification:

Dimension: 14,000mmx2,550mmx3,800mm

Axle Spacer:  Approx 7,000mm+1,310mm+1,310mm+1,310mm

Tare Weight:  9,500kg

Max. Payload: 80,000kg

Main beam:  "I” shape, welded by automatic submerged arc welding.

Floor:  Thickness 3mm.

Side wall and Fence: Detachable, total height 2200mm

Suspension: Heavy duty under mount four-axle suspension. Optional air suspension.

Axles: 14 tons capacity each.

Tyres: 315/80R22.5, 12R22.5, 11.00R20 or 12.00R2

Brake System: Dual air brake system; Optional ABS system.

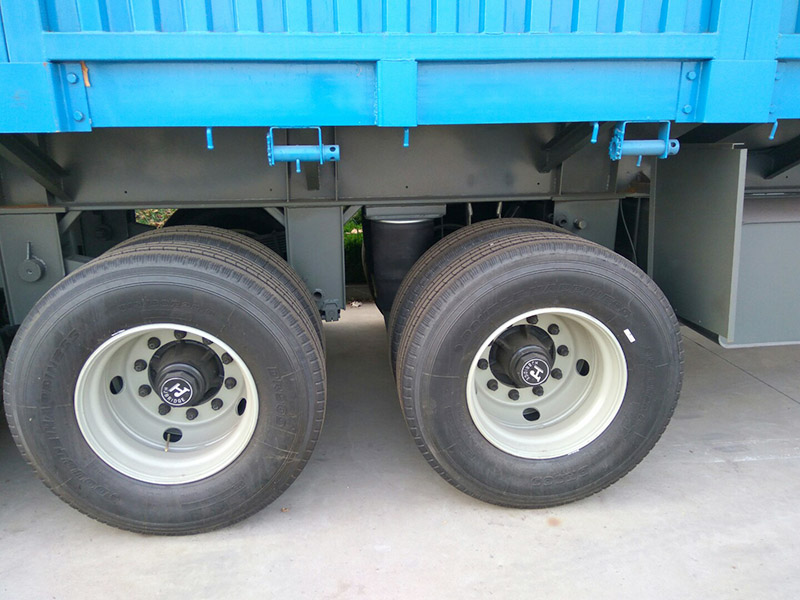

 Air Suspension

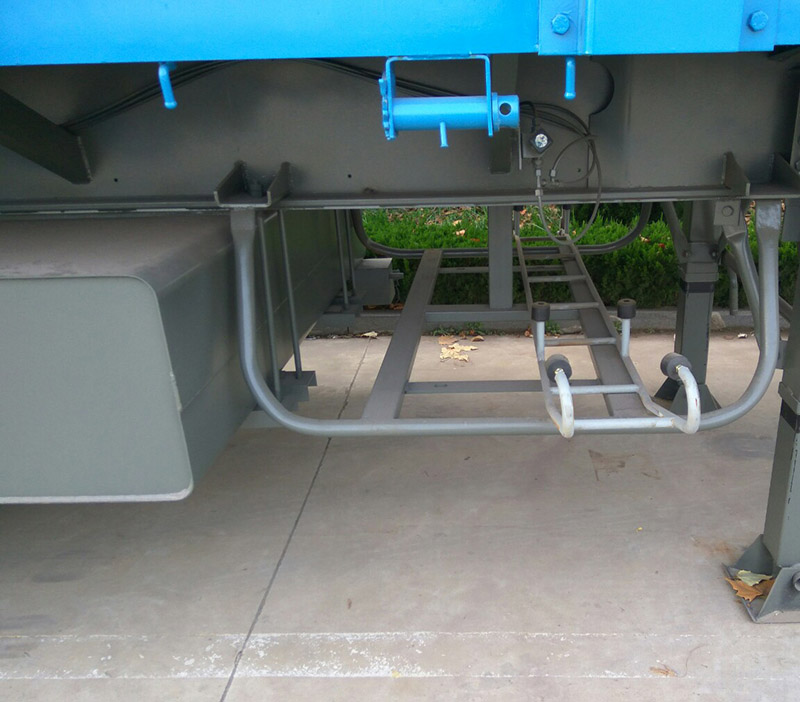

Spare Tyre Carrier
