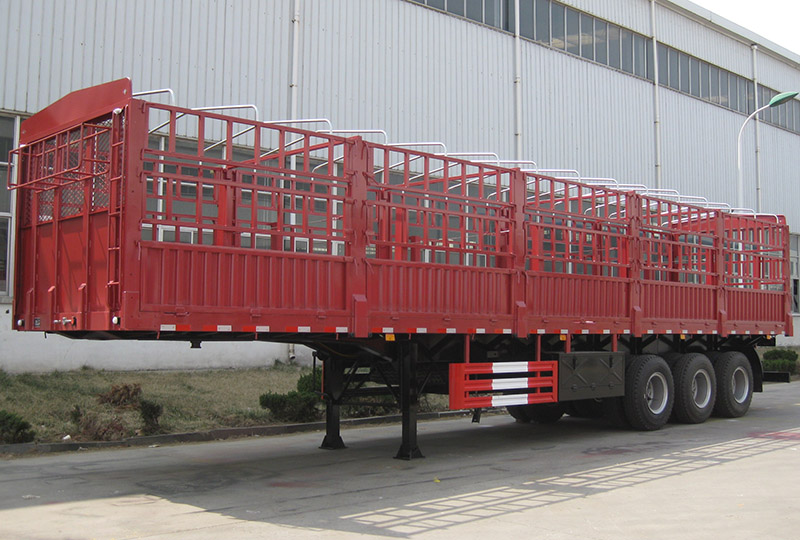

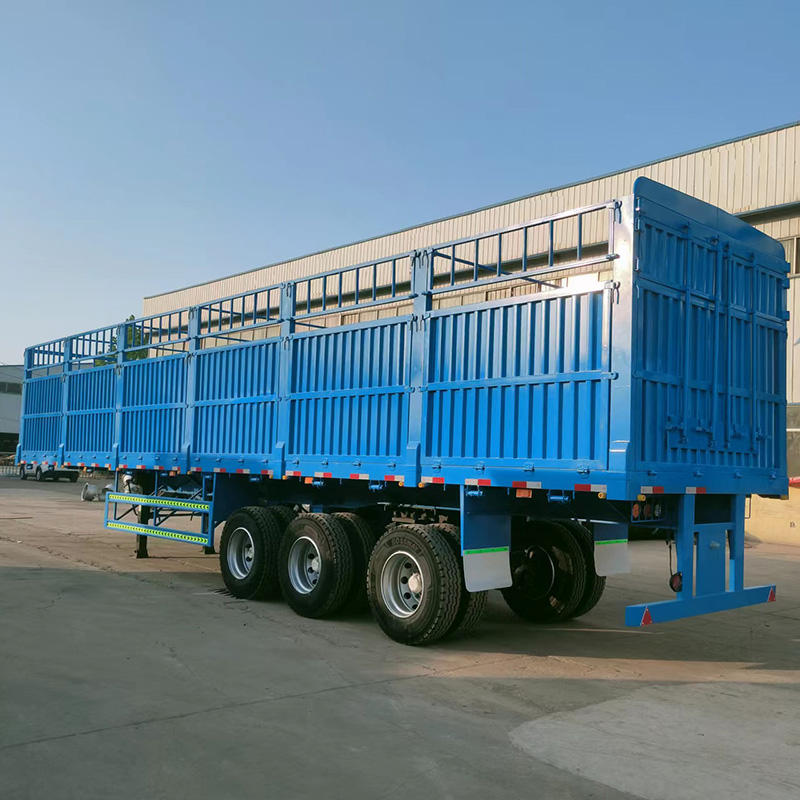

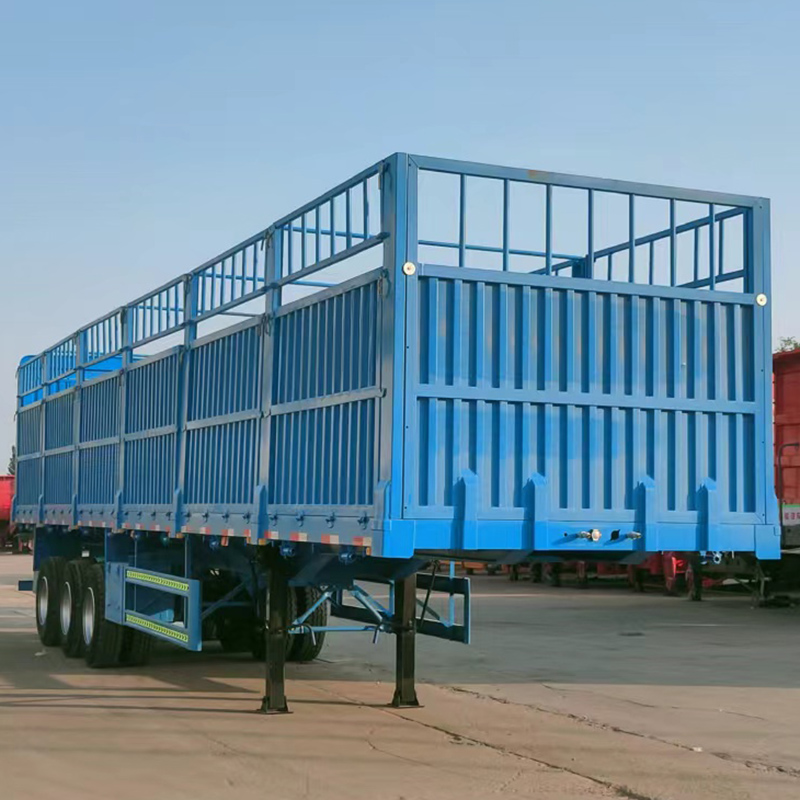

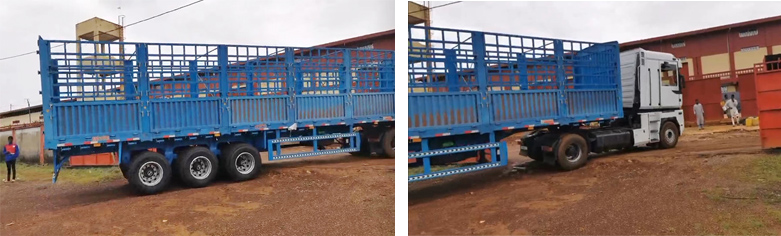

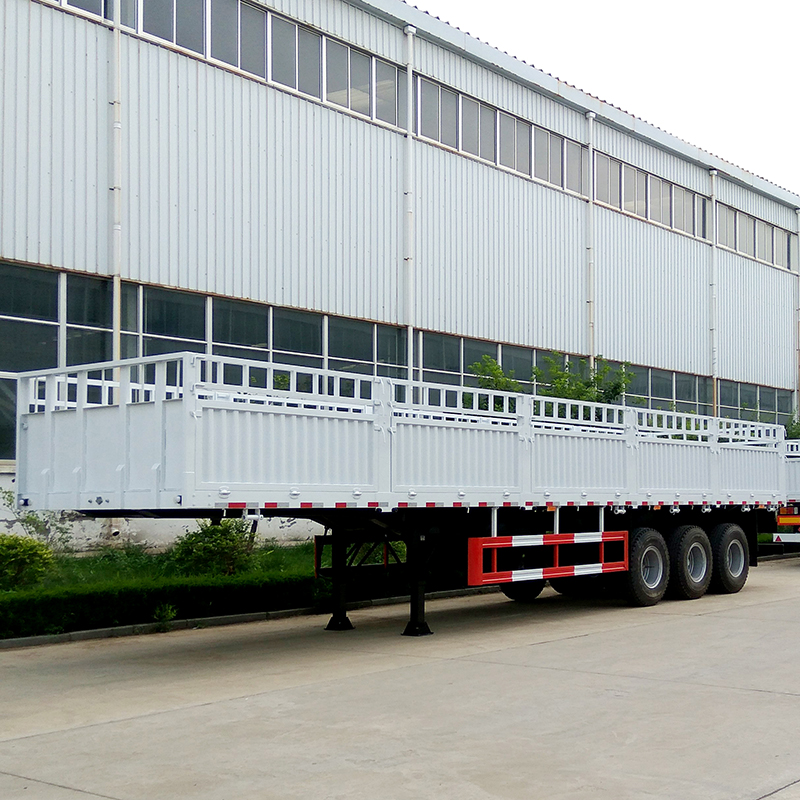

3 Axle 50 Ton Fence Semi Trailer

Length:

13,000mm

Width:

2,500mm

Height:

3,900@unload

Box Body   Dimension:

12280mm*2300mm*2200mm

(800mm side wall+200mm spacing +1200mm fence)

King Pin   Location:

Approx 1,100mm from the front face of the front   bolster.

Landing   Gear Position:

Approx 2,520mm from the king pin.

Axle   Spacer:

Approx 7,000mm+1,310mm+1,310mm

King Pin   Height:

Approx   1,290mm with the chassis level

2. Weight:

Tare Weight:

8,500kg

Max. Payload:

50,000kg

Gross   Vehicle Weight:

58,500kg

3. Steel   Structure:

Main   beam:

“I” shape, welded by   automatic submerged arc welding. Material is mild alloy Q345B.

Cross   beam:

Q235   channel beam, height 100mm.

Side   beam:

Q235   channel beam, height 160mm.

Floor:

Flat sheet, thickness 3mm.

Side   wall   and Fence:

Detachable, side wall height is 800mm, fence height is 1200mm, or other dimensions.

4. Assemblies

King   Pin:

2’’ (50#)   bolting king pin.

Landing   Gear:

2   speed road side winding with sand shoe. Lift capacity 28ton.

Suspension:

Heavy   duty under mount tri-axle suspension with equalizers 10-leaf spring.

Axles:

13 tons capacity each.

Tires:

315/80R22.5, 12R22.5, 11.00R20 or 12.00R20

Brake   System:

Dual  air brake system.

Brake   Chamber:

Type  30/30 on the rear two axles, type 30 on the front axle.

Electrical   System:

24V  7 way ISO

Light   System:

standard

Side   Guard:

standard

Tool   Box:

Equipped  one set

5. Painting:

Color  according to request.
