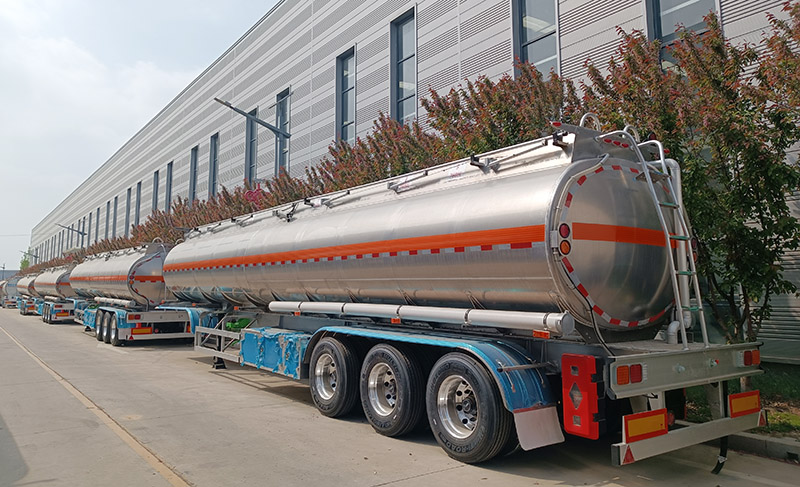

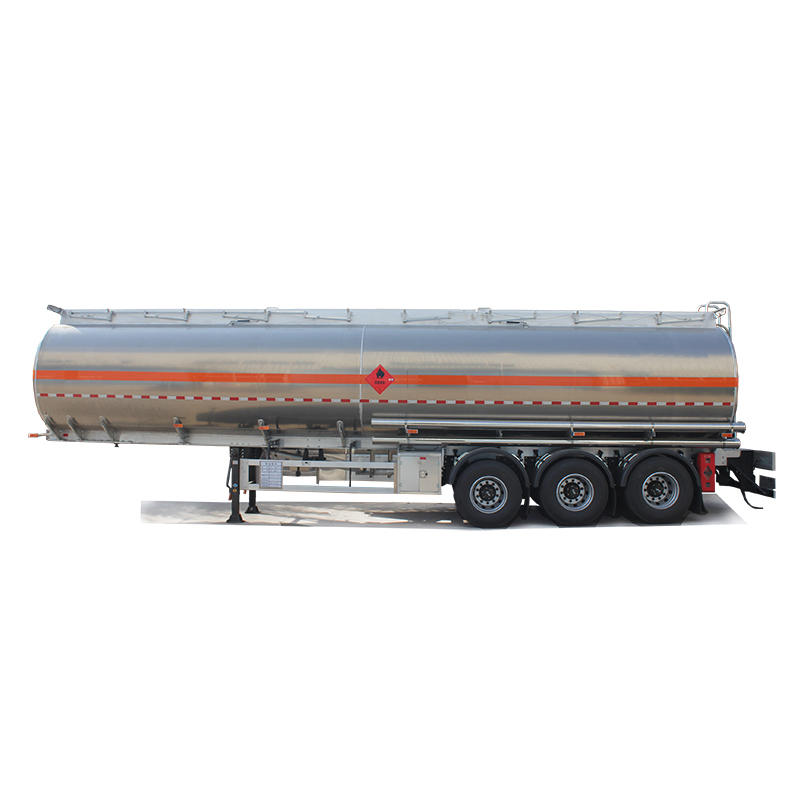

3-Axle Aluminum Tanker Trailer 40,000 Liters

1. JNE aluminum tanker trailer has light weight, good corrosion resistance, anodizing handling, oxide surface film and low center of gravity.

2. Curb Weight of aluminum material is much lighter than Carton Steel, saving energy and good for environment.
3. Re-Use value: Aluminum can be recycled many times, recovery value is more than 85%.
4. Longer cycle life: Aluminum alloy life time is 15-20years (Carton Steel is 7-10year). It is easy to wash and has lower repairing cost.

5. Safety factors: good electrical conductivity and energy absorption. There is little static gathered on the trailer, not easy spark.

Contact Now E-Mail Telephone WhatsApp

Product Details

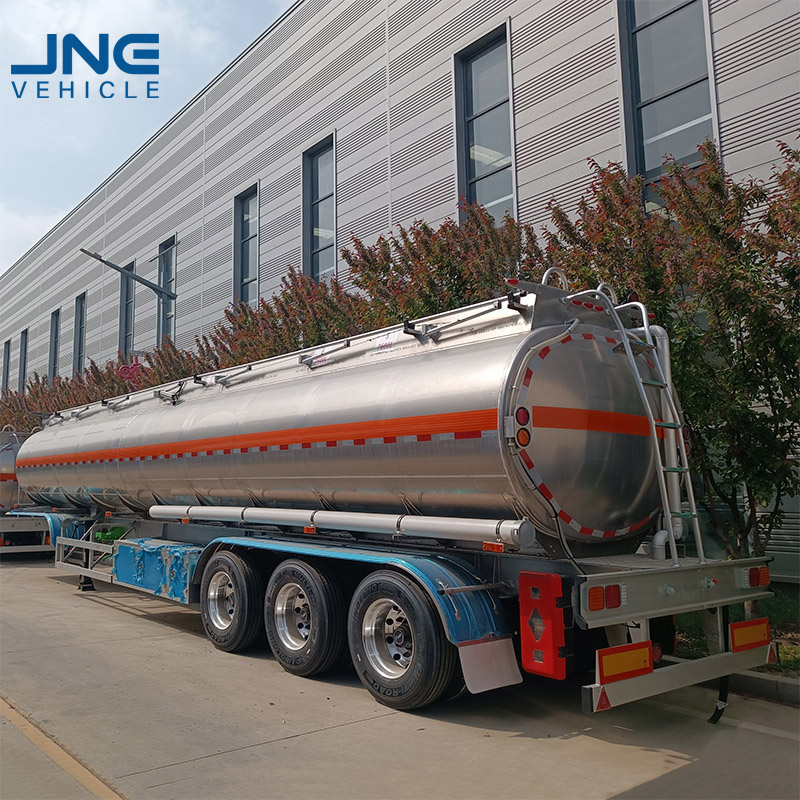

3-Axle Aluminum Tanker Trailer 40,000 Liters

--- Where we use Aluminum Tanker Trailer？

Aluminum tanker trailer is for transportation of Fuel, Diesel, Petrol, Jet, Oil, Crude Oil, and especially for companies who want less weight of tanker trailers.

--- What about Axles,Tyres and other components..?

FUWA, BPW, JNE axles with single or double tyre 385/65 R22,5, 315/80R22.5, 12R22.5, 12.00R20.

Aluminum Tanker Trailer

JNE Aluminum Tanker Trailers were adopted an advanced design concept. To fabric the most durable tankers, especially for Africa market, considering the road condition, which make your transport safety, also beneficial.

Axles 45000Liters Aluminum Alloy Fuel Tanker Trailer

Specification:

Model: JNE9450TK

Axle: 13 Ton capacity

No. Of the Axles: 3 pcs

Tyre Specifications: 12R22.5, 315/80R22.5

No. Of the Tyres: 12 pcs

Landing Gear: 28 ton capacity Fuwa with static capacity of 80T

Suspension: Heavy duty mechanic suspension with 10 pcs leaf spring

King Pin: 2' and 3.5' inter-changeable traction pin

Main beams Q345B/ST52-3

Brake System: Automatic air brakes, Double pipe line air brake, front axle is 30 air chamber, rear two axle is 30/30 air chamber.

Color: As the buyers' request

Accessory: One tool box, two spare tire carriers, two fire extinguishers

Electrical System: 24V, 7core socket, lights according to European standards.


Optional parts for the Aluminum Tanker Trailer:

---The tank volume is 30-60CBM,

---Tank body can be mirror polishing optional;

---The tank body material is model AL5083,AL5182, AL5454 optional;
---The tank body is one compartment or multi compartment optional;
---The suspension is air, mechanic and bogie suspension type optional.

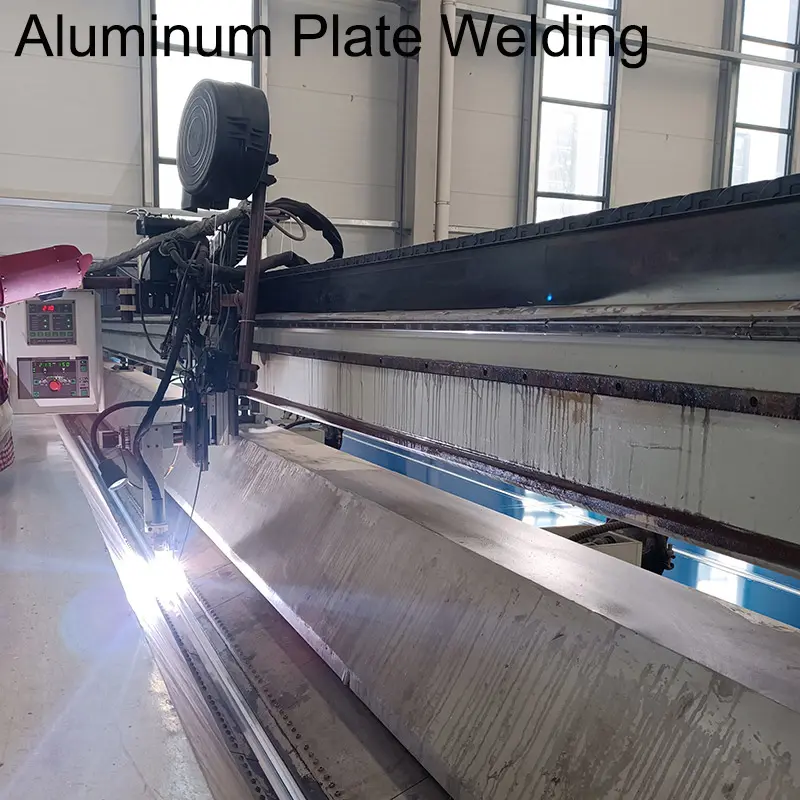

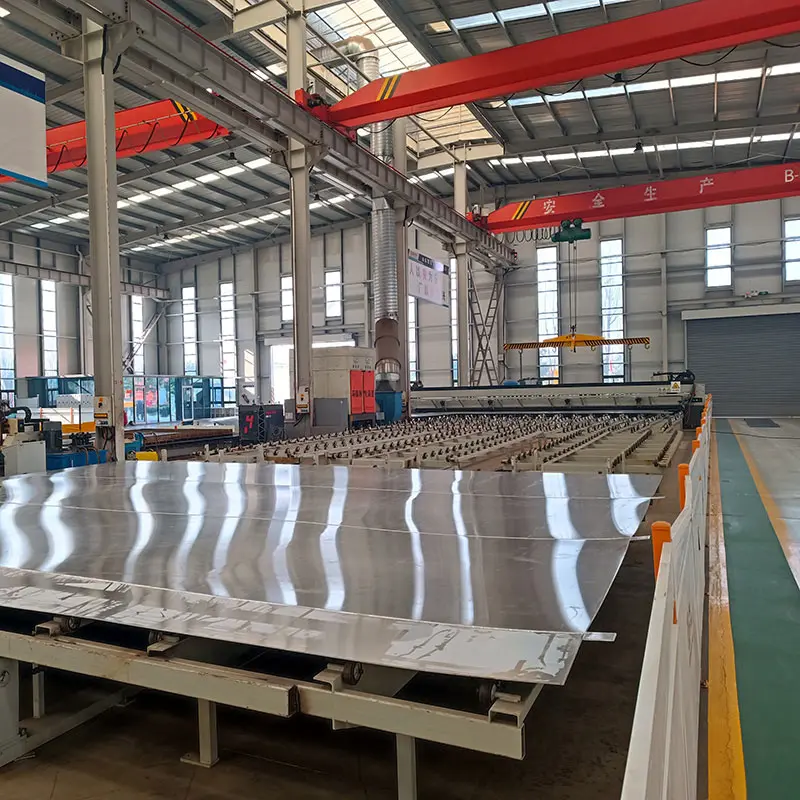

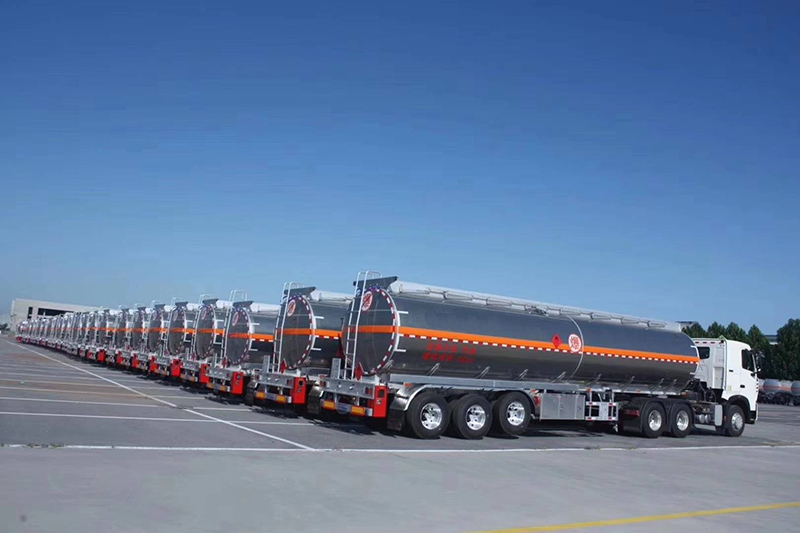

Production Line for Aluminum Tank Semi Trailer:

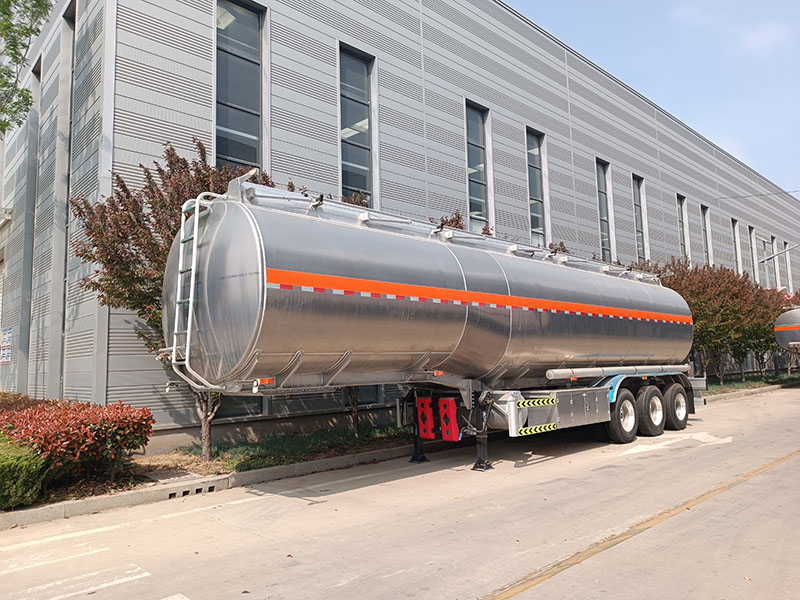

Axles 45000Liters Aluminum Alloy Fuel Tanker Trailer
