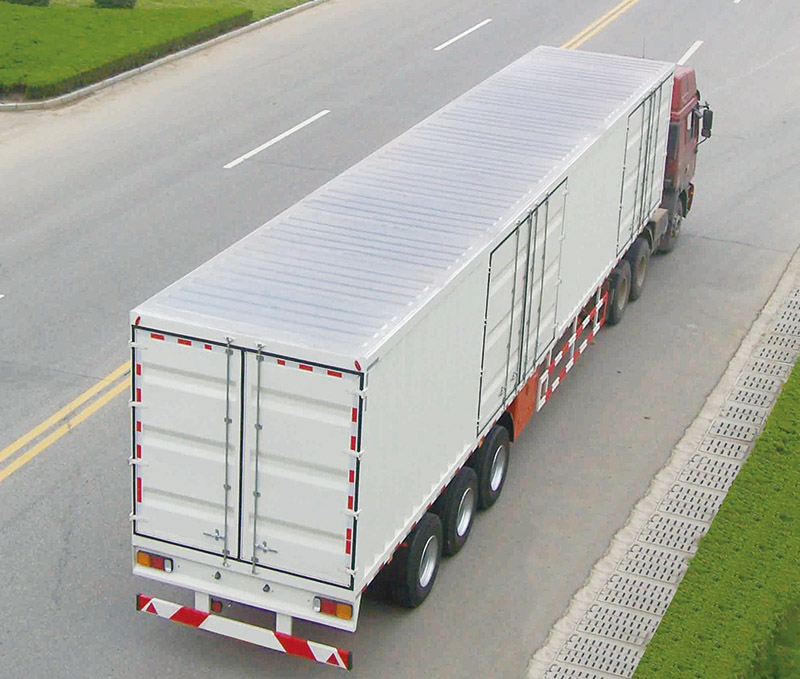

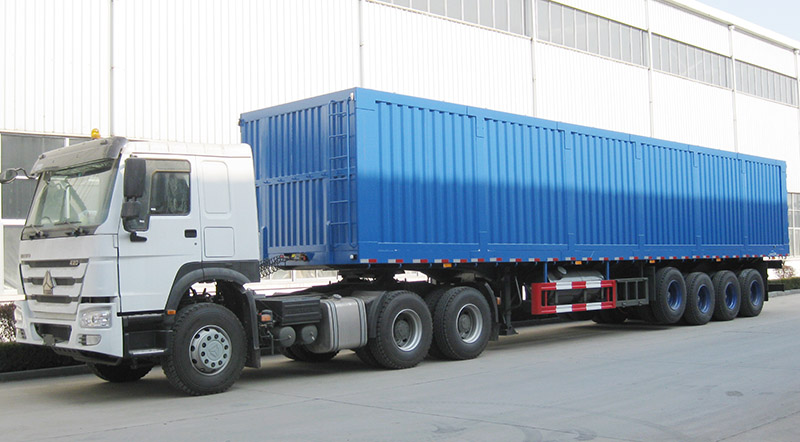

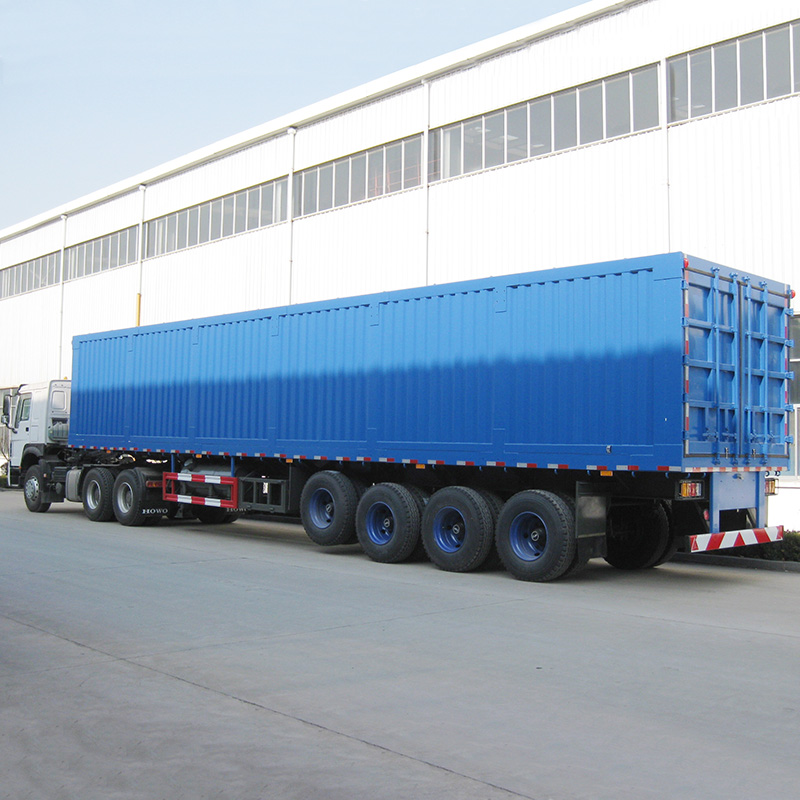

4-Axle Van Trailer

JNE van trailer is ideal for high cube and heavy duty transport, meeting your requirements that deliver on the promise to increase productivity, minimize operating costs, and deliver a lower cost per kilometer.

The first axle is designed with an air suspension that can be lifted. To provide lower cost for transporting lightweight goods or empty vehicles.

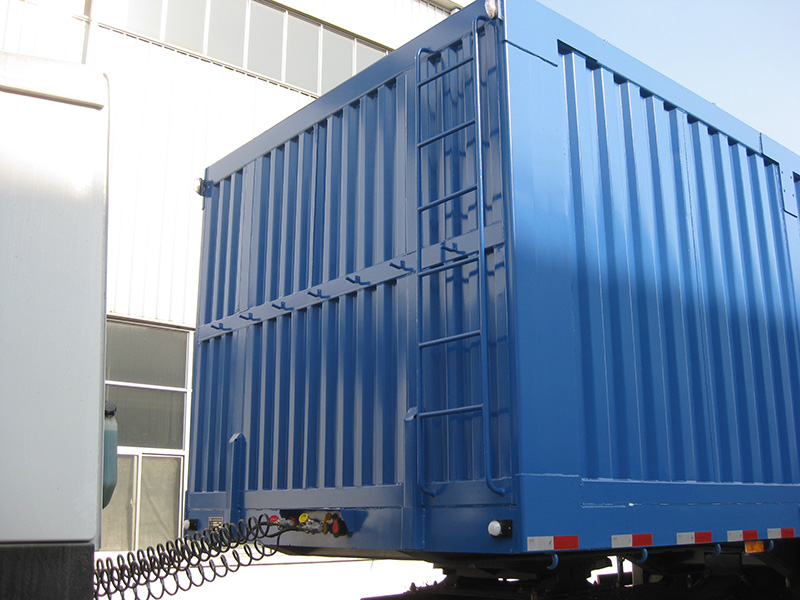

Heavy duty design: Strengthening columns and corrugated side wall

Specification:

Overall dimension(mm): (14000-15000)x2550x4000

Payload(kg): 30,000-50,000

Wheelbase(mm):  8200+1310+1310+1310 or reasonable design

Wheel Track(mm): 1840

Tyre: 12R22.5, 315/80R22.5, 11.00R20, 12.00R20

Everything we do, from design to manufacture is to provide you with products that optimize efficiency, lower
costs, and deliver a long life cycle.
