3-axle Drop Side Trailer

Description:

Sidewall semi trailer is also called drop side trailer. It is designed as a flatbed truck with side wall, and the flatbed is equipped with container locks, which can be used to transport 20ft and 40ft containers. The detachable side wall makes loading and unloading easier and more convenient. You can install it when you need it, and when you don’t need it, you can always remove it and use it as a flatbed.

Sidewall semi trailer can be used to transport all kinds of bulk goods, such as bag cement, grain, agricultural products, etc. It is a very popular semi-trailer and the side wall design makes it easy to transport and unload, which is a very useful semi-trailer.

Specification:

Model: JNE9400LB

Tyre Specifications: 12R22.5, 315/80R22.5, 11.00R20, 12.00R20

No. of the Tyres: 12 pcs

Axle: 13 Ton capacity

No. of the Axles: 3 pcs

Landing Gear: 28 ton capacity Fuwa with static capacity of 80T

Suspension: Heavy duty mechanic suspension or air suspension

King Pin: 2' and 3.5' inter-changeable traction pin

Material of the Main Beam: Automatic submerged arc welded

Main beam: Q345B steel, middle flange 8mm, bottom flange 16mm

Side beam: 16# channel steel

Floor: 3mm diamond steel plate

Brake System: Automatic air brakes, Double pipe line air brake, front axle is 30 air chamber, rear two axle is 30/30 air chamber.

Light : Tail lamp with turn signal, brake light & side lamp, etc.

Color: As the buyers' request

Accessory: One tool box, two spare tire carriers

Electrical System: 24V, 7core socket, lights according to European standards.

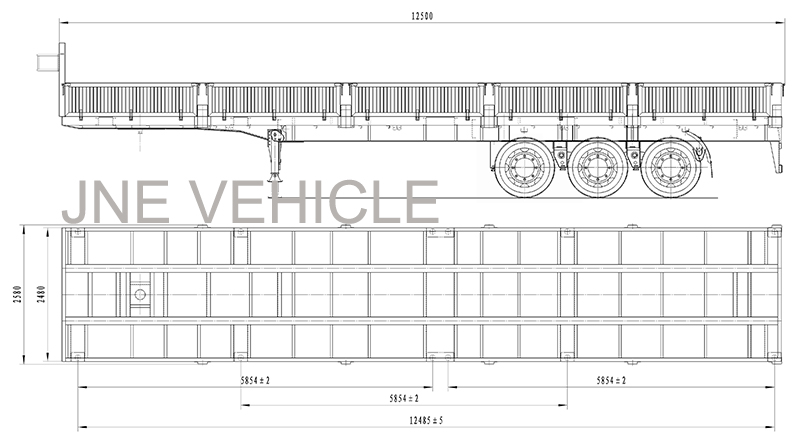

Drawing of 40 Ton sidewall semi trailer:

Side wall semi trailer application:

Side wall semi-trailer is generally used to transport bulk cargo. It is mainly used for long-distance transportation. Generally, the side wall trailer can transport 30-80 tons.

If you have heavy duty of transportation or different needs, we can customize it. And different side wall height of trailers can be customized.
