1. Usage and Classification of Tow Trucks
Tow truck is also known as wrecker, recovery vehicle. Tow Truck is a specialized vehicle that can not only quickly and safely clean up accident vehicles and illegal vehicles on the road to ensure unobstructed traffic, but also be used for emergency rescue.
With the rapid development of the national economy and the increasing development of transportation, the number of cars is also increasing year by year. It is inevitable that people will encounter traffic accidents or vehicle breakdowns when traveling. At this time, wrecker towing trucks come in handy.

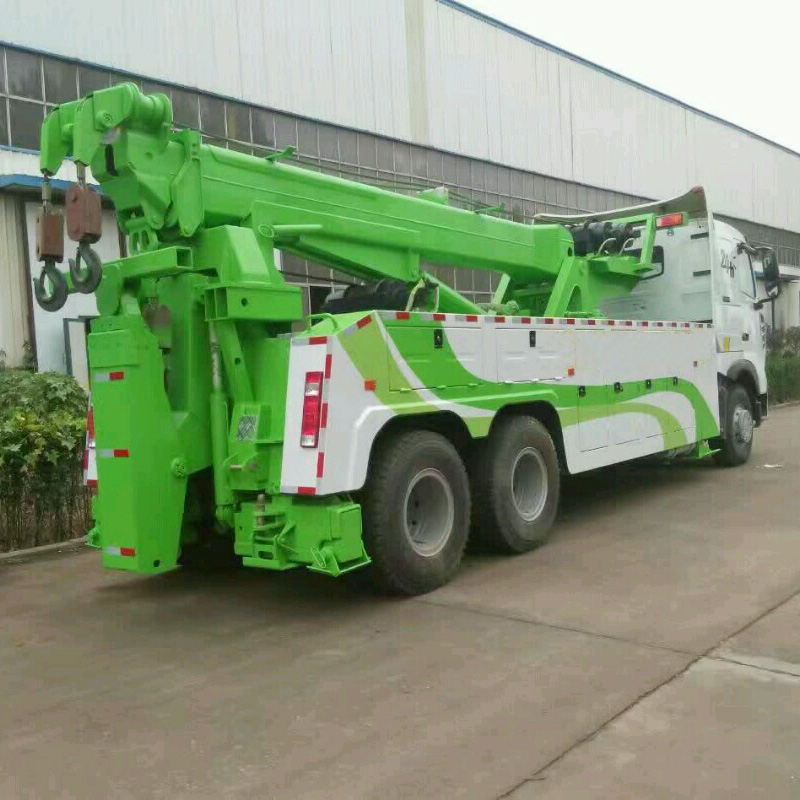

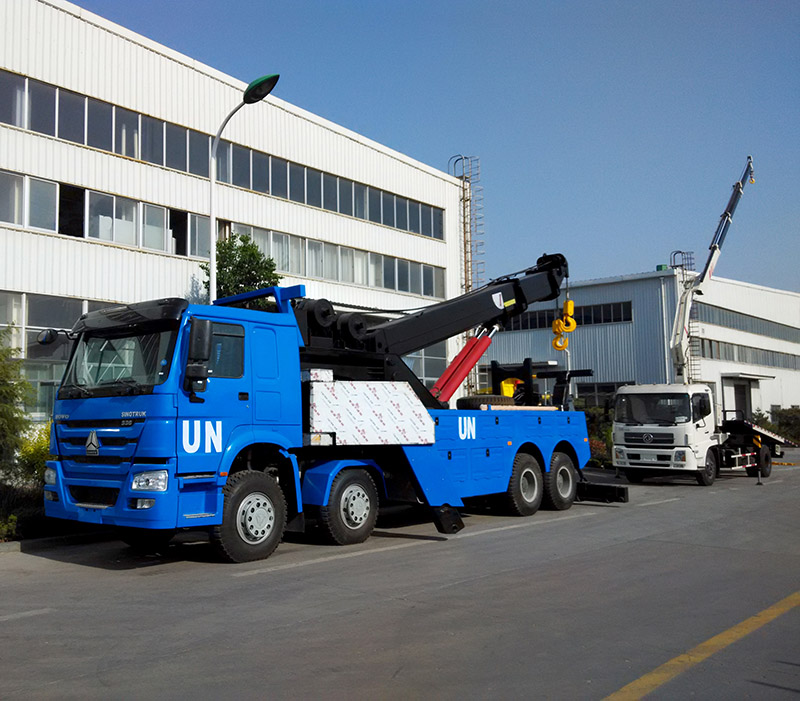

JNE wreckers show
According to the structural form, wrecker towing trucks can be divided into four categories:
Flatbed tow truck, light duty tow truck, heavy duty tow truck (boom and under-lift combined type), and rotator tow trucks (boom and under-lift separated type).

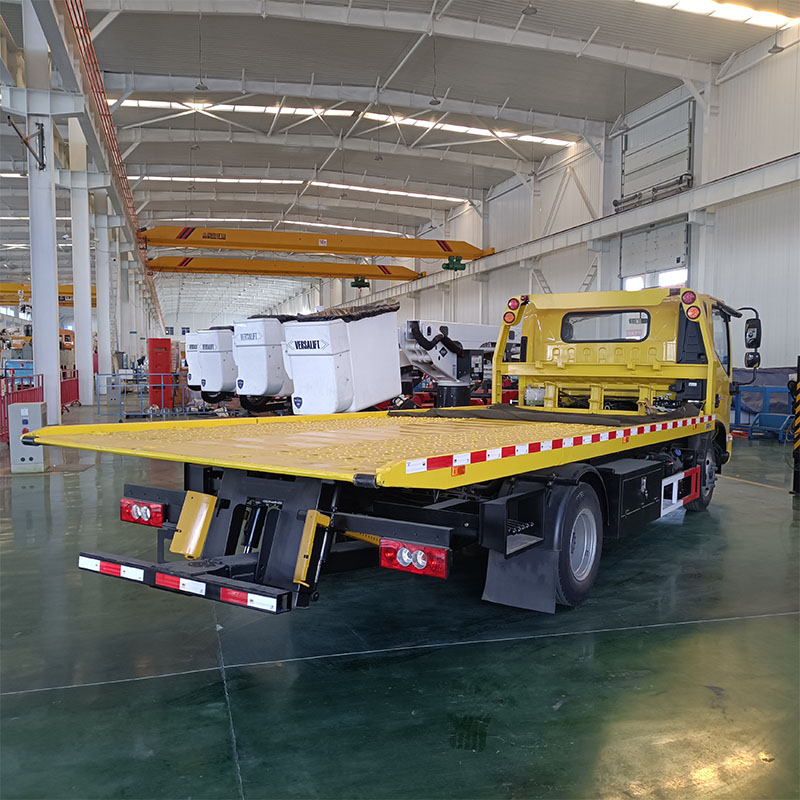

Flatbed tow truck

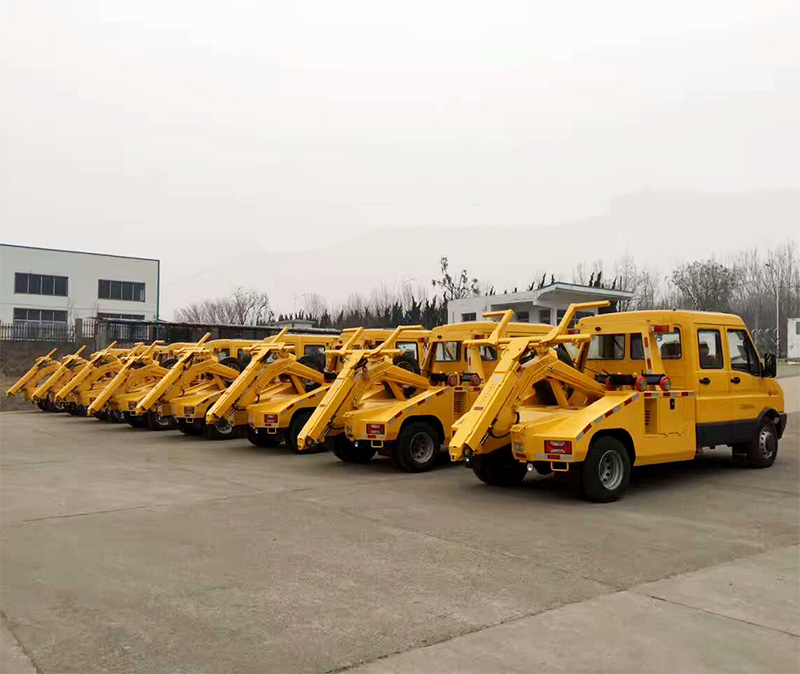

Light duty tow truck

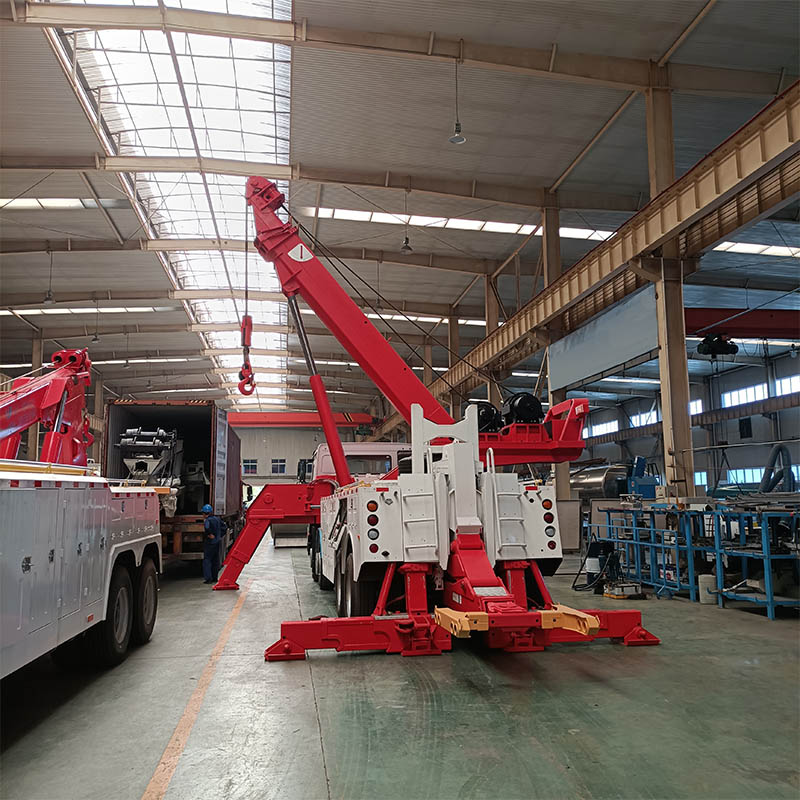

Heavy duty tow truck

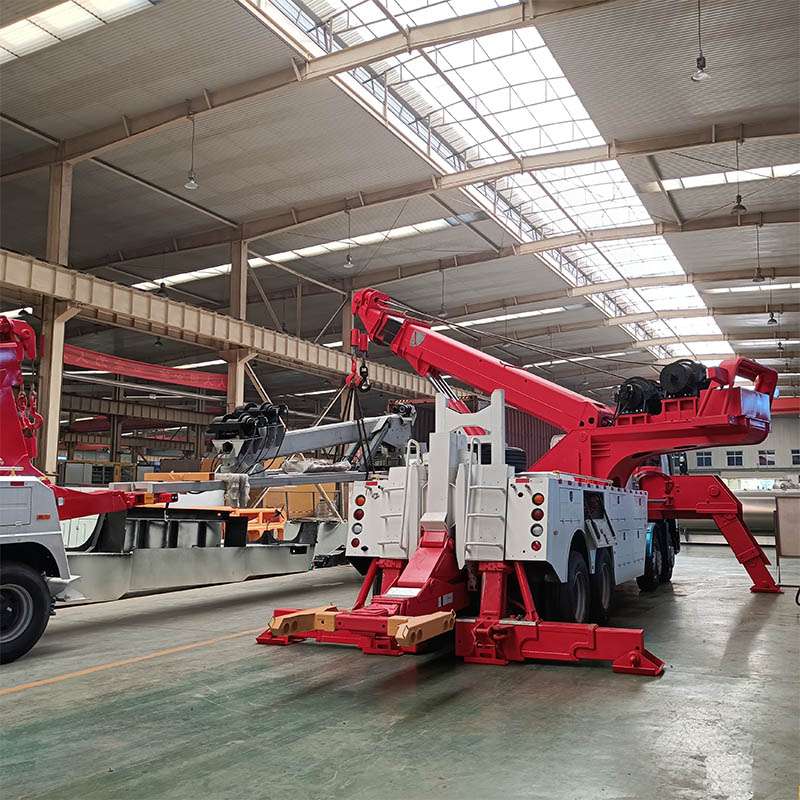

Rotator tow truck

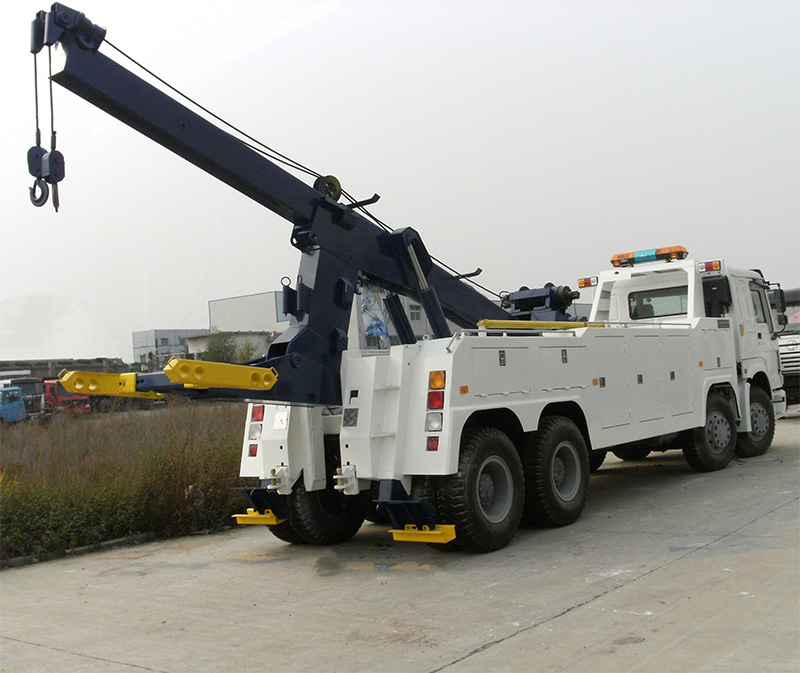

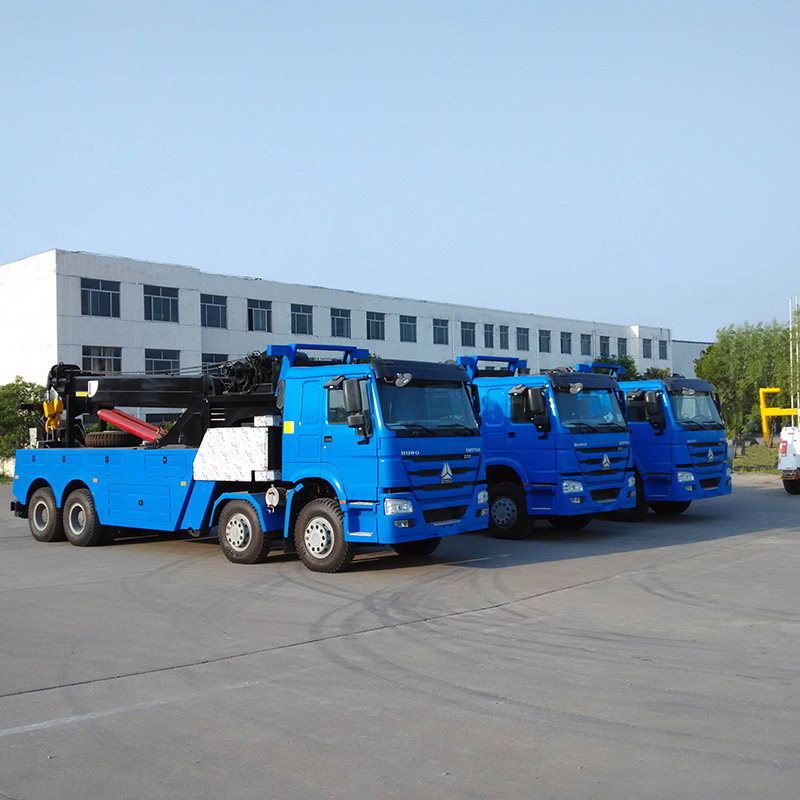

2. SINOTRUK Wrecker 50ton Specification
Wrecker 50ton is manufactured with introduction of American advanced wrecker technology. The wrecker body is basically made up of sub-frame, boom, under-lift, outriggers and compartments. In addition, the wrecker has many accessories for towing operation. Every action of wrecker body such as elevation, extension, pulling and lifting is controlled by hydraulic, and can be controlled by wireless remote control or from the Control Station located in compartments of both sides of the rear body. With many kinds of accessories, the wrecker can deal with all kinds of damaged vehicles including bus, trucks and semi-trailers.
Specification:
Overall dimension: 11535mmx2500mmx3755mm
Chassis Brand: SINOTRUK HOWO
Axle Number: 4 axles, driving type 8x4
Engine Power: 380HP
Rear Axle: 16ton tandem axle
Tires: 12.00R20
Tow Body/Wrecker Equipment
BOOM:
Maximum lift weight: 50,000kg
Maximum lift height 12050mm
Telescopic distance 3000mm+3000mm
Range of elevation angle: 2-60 degrees
UNDER-LIFT
Maximum lift weight (parking): 25000kg
Maximum extended lift weight: 7800kg
Rated lift weight: 13800kg
Maximum effective length: 3588mm
Telescopic distance: 1850mm
Range of elevation angle: -7°-95°
WINCH& CABLE
Rated pull of winch 250KN*2units
Cable diameter*Length 28mm*50m
Min. line speed of cable 5m/min
LANDING LEG
Span of front landing legs 6300mm
Span of rear landing legs 4320mm

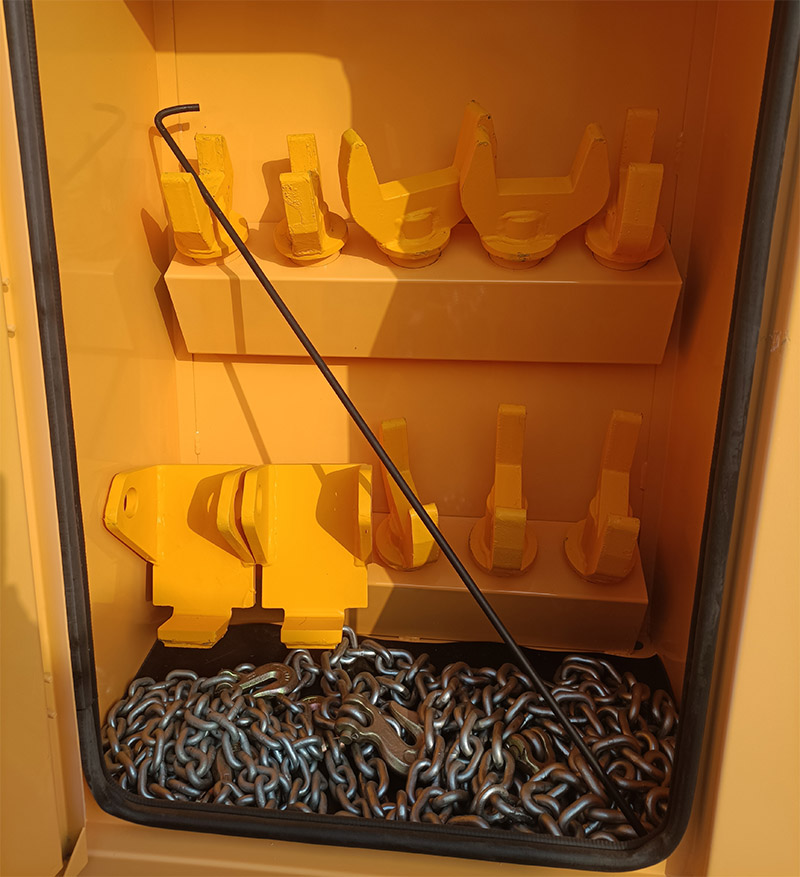

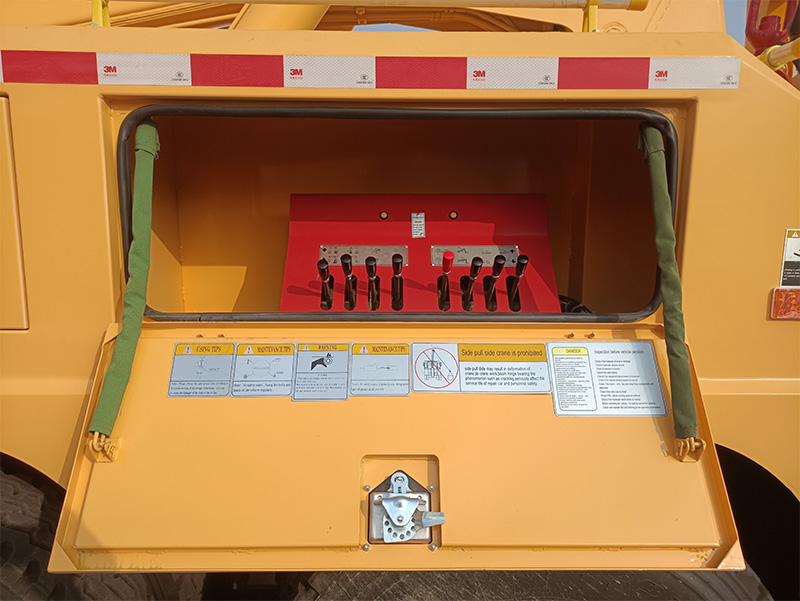

Control and Towing Accessories

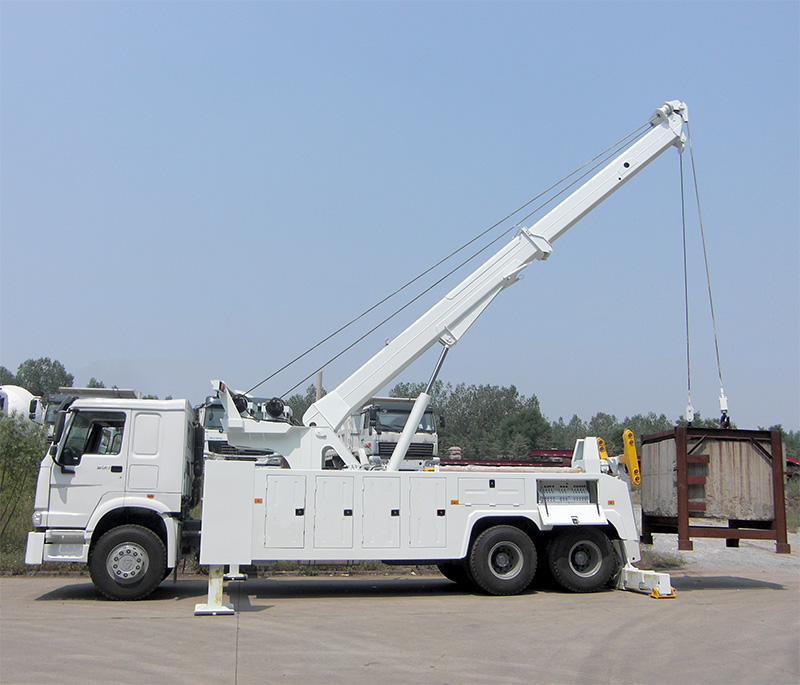

Wrecker Test
Customer Cases
