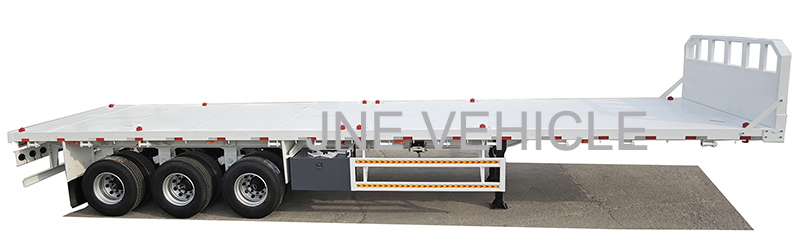

The flatbed trailer is mainly composed of main frame, front panel, container locks, axles, tires, suspension, lighting circuit system, ABS braking system(optional), toolbox, landing gear, side and rear protective devices and safety accessories.
![Container Flatbed Trailer with Bulk Head]( "Container Flatbed Trailer with Bulk Head")
Main frame

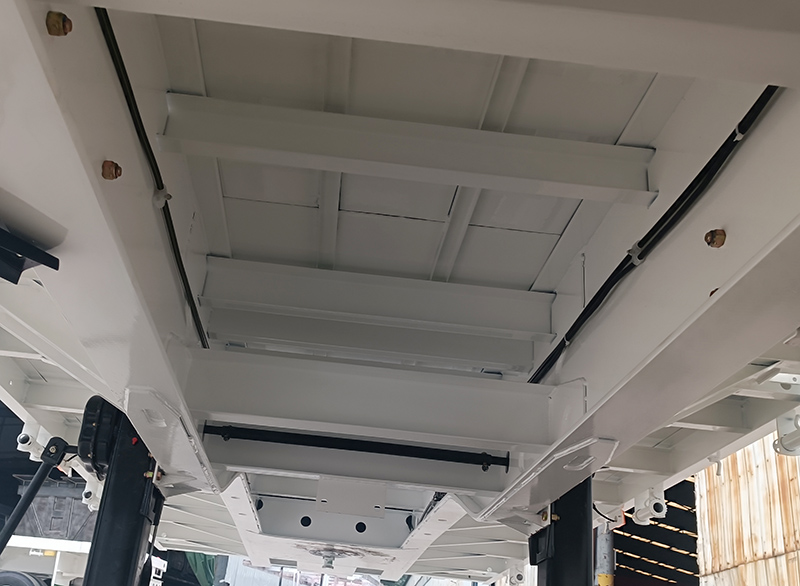

The main frame is the load-bearing body of the trailer, which is welded into a frame structure by two longitudinal beams and several channel shaped crossbeams. The transverse section of the trailer longitudinal beam is in the shape of an "I", and the material is high-strength steel plate, which has the characteristics of high strength, high stiffness, and light weight.
![main beam of flatbed trailer]( "main beam of flatbed trailer")

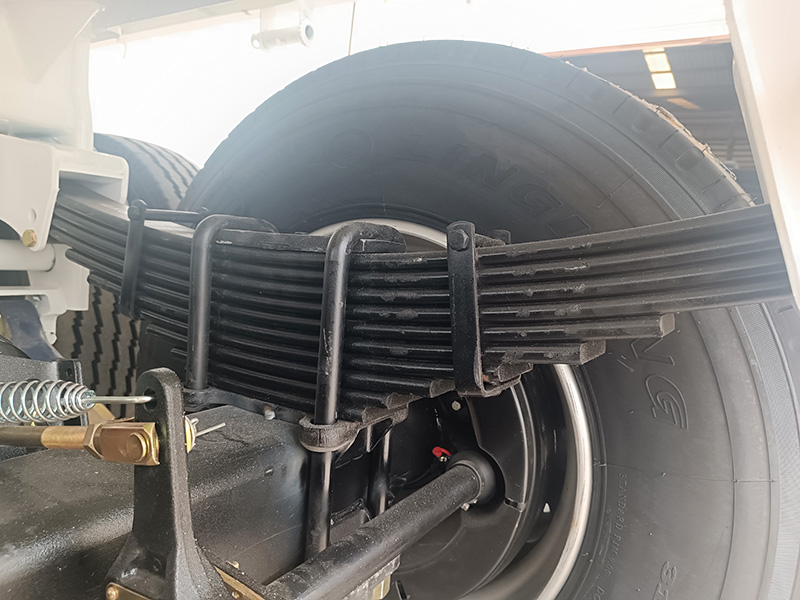

Leaf spring bracket, suspension
The suspension mainly consists of front bracket, middle bracket, rear bracket, adjustable pull rod, non-adjustable pull rod, balance shaft, balance beam, U-shaped bolt, fixing seat of pull rod, upper and lower clamping plates for axle, and leaf springs. The suspension should be regularly maintained and serviced, and the lubrication condition of each tightening bolt and lubrication part should be checked regularly.
![leaf spring of trailer]( "leaf spring of trailer")
Specification of flatbed trailer
1. Dimension: |
|
Length: | 12,500mm |
Width: | 2,500mm |
Height: | 1,600mm |
Axle Spacer: | 6,880mm+1,310mm+1,310mm |
King Pin Height: | 1,300mm |
2. Weight: |
|
Tare Weight: | ~7,000kg |
Max. Payload: | 40,000kg |
Gross Vehicle Weight: | ~47,000kg |
3. Steel Structure: |
|
Material: | High strength low alloy steel Q345B is used for welded I-beam and Q235 is used for the fabricated parts |
Main beam: | “I” shape, welded by automatic submerged arc welding. Material is mild alloy Q345B, height 500mm. |
Side beam: | Q235B channel beam, height 160mm. |
Floor: | Checkered sheet, thickness 3mm. |
Bulk head: | One bulk head |
4. Assemblies |
|
King Pin: | JOST 2'' (50#) bolted king pin, |
Landing Gear: | 2 speed road side winding with sand shoe. Lift capacity 28ton. |
Suspension: | Heavy duty under mount tri-axle suspension |
Axle: | 13 tons capacity each, 3 axles |
Tyre: | 315/80R22.5 or 12R22.5 |
Container locks: | 12 twist locks |
Brake System: | Dual air brake system |
Brake Chamber: | Type 30/30 on the rear two axles, type 30 on the front axle. |

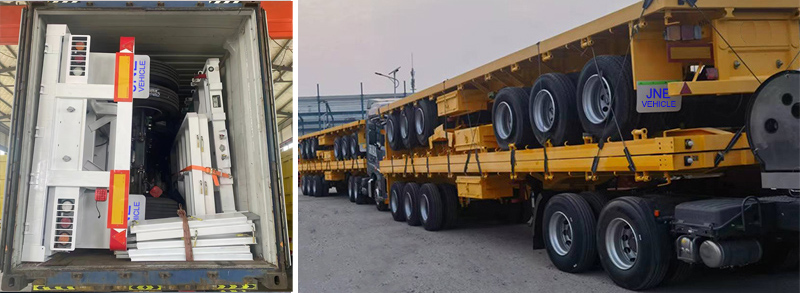

Package:
Shipment in container or by bulk vesseel.
![packing.jpg]( "1729519245495779.jpg")
