Four-axle Flatbed Trailer

1. Design: We have different designs to ensure the strength and cost-effectiveness of the trailer for different loading capacity and different road condition.

2. Metal structure and welding: Automatic welded structural and assembly components. Top-class carbon steel plate for structure.

3. Surface treatment: Adopting polyurethane painting or powder spraying process for painting, and will not come off after 5 years.

4. Famous brand parts and assemblies: High performance axles, high strength suspension, and reliable dual circuit air brake with quick release valve and quick response of wheel cylinder ensures safe operation.

Contact Now E-Mail Telephone WhatsApp

Product Details

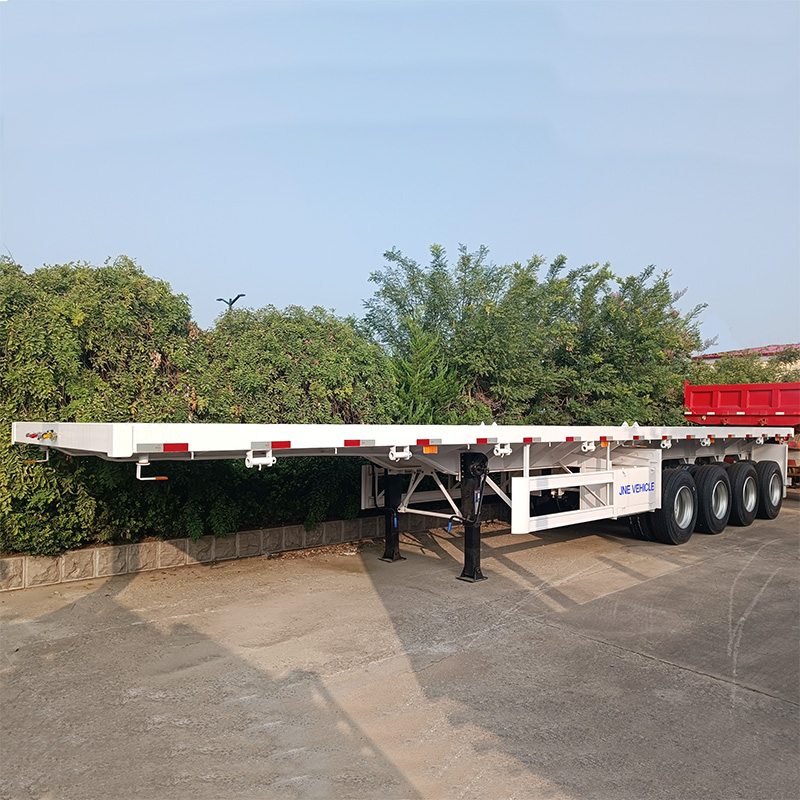

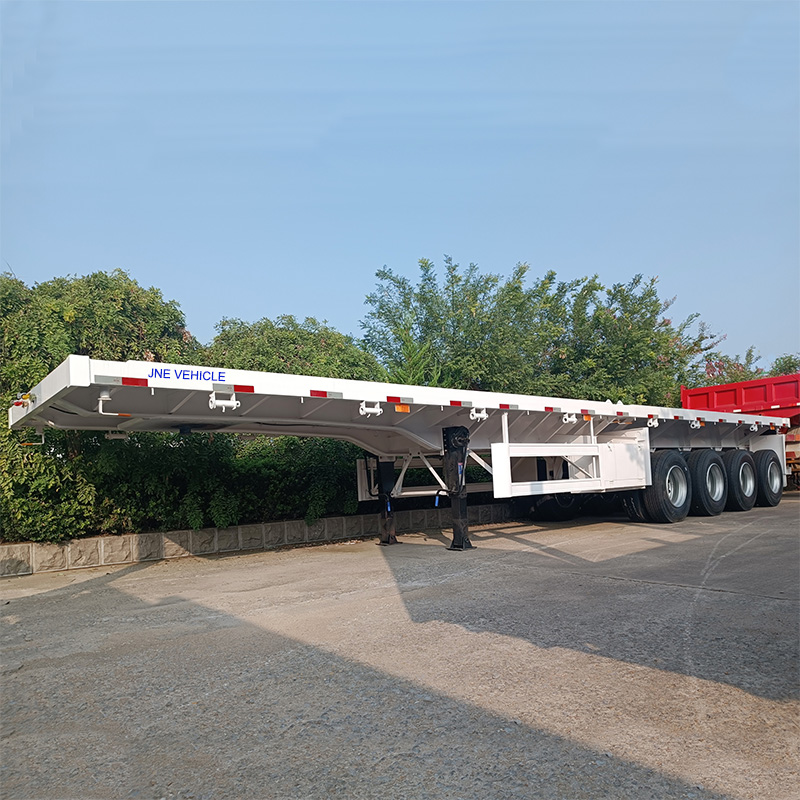

Four-axle Flatbed Trailer

Product Details:

JNE flatbed trailer is usually used to transport bulk cargo and 20ft/40ft container. Four-axle trailer has load capacity of more than 50 tons.

Four Axle Flatbed Trailer

JNE flatbed semi trailer can be customized according to customer needs.

Different options:

Axle number: 2 axles, 3 axles or 4 axles

Load capacity: 40 ton, 50 ton, 60 ton.

Suspension: Airbag suspension, steel leaf spring suspension.

Product Details:

Flatbed Trailer Details

1. Dimension:
Length:	12,500mm~14,000mm
Width:	2,500mm~2,700mm
Height:	1,550~1,650@unload
King Pin Location:	1,150mm~1400mm from the front.
Landing Gear Position:	2,520mm from the king pin.
Axle Spacer:	6,880mm+1,310mm+1,310mm++1,310mm, or customized design
King Pin Height:	Approx 1,330mm with the chassis level
2. Weight:
Tare Weight:	7,600kg~8,900kg
Max. Payload:	40,000kg~60,000kg
3. Steel Structure:
Main beam:	“I” shape, welded by automatic submerged arc welding. Material is mild alloy Q345B, height 500mm.
Side beam:	Q235B channel beam, height 160mm or 180mm.
Floor:	Checkered sheet, thickness 3mm or 4mm.
4. Assemblies
King Pin:	2’’ or 3.5’’ bolted king pin.

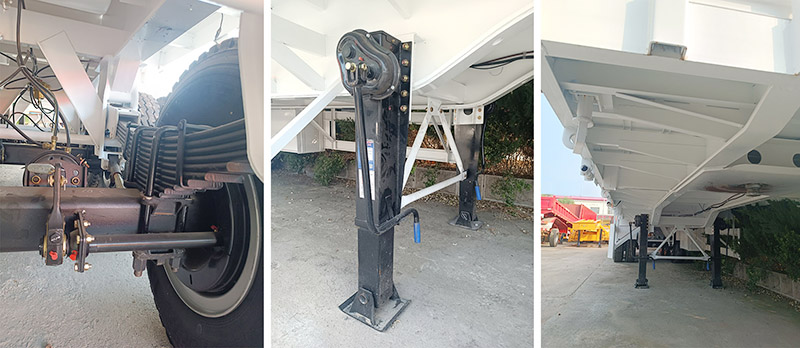

Landing Gear:	2 speed road side winding with sand shoe. Lift capacity 28ton.
Suspension:	Heavy duty under mount tri-axle suspension with equalizers 10-leaf spring.
Axle:	Square axle, 13 tons or 16 tons capacity each, 3 axles.
Tyre:	315/80R22.5, 12R22.5 or 12.00R20
Container locks:	12 twist locks, for 1x40ft, 2x20ft or 1x20ft container.
Brake System:	Dual air brake system.
Brake Chamber:	Type 30/30 on the rear two axles, type 30 on the front axle.

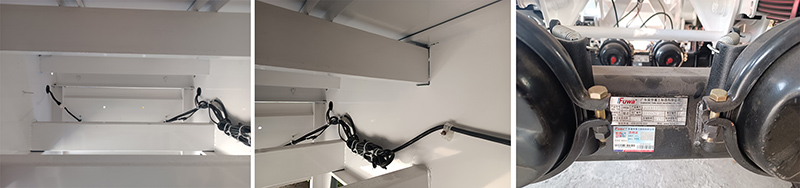

Electrical System:	24 volt lighting system with modular wiring harness, 7 way ISO receptacle in front of the front bolster.
