Working principle
JNE Flatbed Tow truck 18 ton working principle of flat clearing vehicle: The engine transmits power to the hydraulic oil pump through the power take-off installed on the gearbox. The high-pressure hydraulic oil generated by the hydraulic oil pump is delivered to each cylinder or hydraulic motor through the control valve, thereby achieving the movement of each working mechanism。

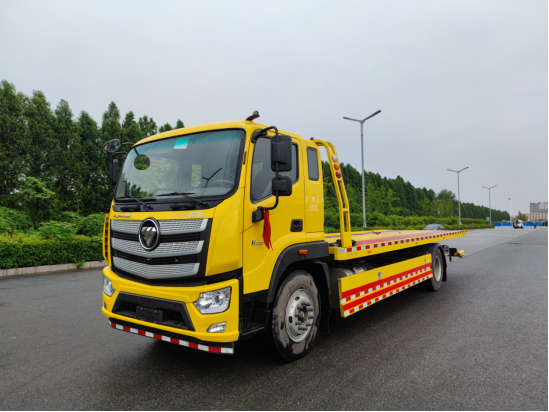

![JNE Flatbed Tow truck 18 ton]( "JNE Flatbed Tow truck 18 ton")
![JNE Flatbed Tow truck 18 ton]( "JNE Flatbed Tow truck 18 ton")
Dimension Parameter
（mm） | Overall Dimension | Length（mm） | 9760 |
Width（mm） | 2500/2550 |
Height（mm） | 2790 |
Tablet size | Length（mm） | 7300 |
Width（mm） | 2550（Inside 2520） |
Wheelbase | 5150 |
Front overhang | 1270 |
Rear overhang | 3190 |
Weight Parameter
（kg） | Curb weight | 9520 |
Max. Gross Vehicle Weight | 18000 |
Front axle load | 6500 |
Rear axle load | 11500 |
Vehicle Passability Parameter | Maximum climbing angle (°) | 30 |
Minimum ground clearance (mm) | 200 |
Approach angle（°） | 19 |
Departure angle（°） | 10 |
Lifting weight (kg) | 8170 |
Maximum load capacity of flatbed(kg) | 15000 |
Rated traction weight of winch (kg) | 8000 |
Sliding distance of flatbed (mm) | 4000 |
Minimum tilt angle of flatbed (°) | 11 |
Pulling speed of cable wire(m/min) | 8 |
Tire size | 10.00R20 18PR |
Detailed advantages and parameters:
1. The tow truck body is painted using cathodic electrophoresis technology. Degreasing, cleaning, surface adjustment, phosphating, and electrophoresis are performed before assembly. Salt spray resistance of over 800 hours and extremely strong rust prevention ability.
2. Adopting imported Italian Hydrocontrol multi way control valves to improve the operational stability and quality of the hydraulic system.
3. Laser cutting with high precision, improved production process accuracy.
4. The flatbed floor is adopted 6mm checkered plate, and 8mm for option.
5. The performance level of tow truck structural parts is strengthened, the flatbed adopts H-shaped steel slider, and the bottom is densified with slant support.
6. According to the temperature environment of the customer's vehicle, 46/32 hydraulic oil could be selected.
7. Electroplating processes are used for all shafts to avoid the phenomenon of shaft sleeve jamming.
8. Installed grease fittings at all contact points between the oil cylinder and the pin shaft for easy maintenance.
9. Using polymer polyethylene grinding cymbals, compared to ordinary grinding cymbals, it effectively reduces the friction coefficient.
10. The shaft sleeve adopts self-lubricating copper sleeve, which does not require grease maintenance.
11. The low surface design of the flatbed reduces the center of gravity of the goods being carried and improves operational stability.
12. The openings on both sides of flatbed make it easy to bundle and fix various types of straps.
13. Beautiful, elegant and sturdy side protection, convenient for customers to paint of stick rescue phone.
