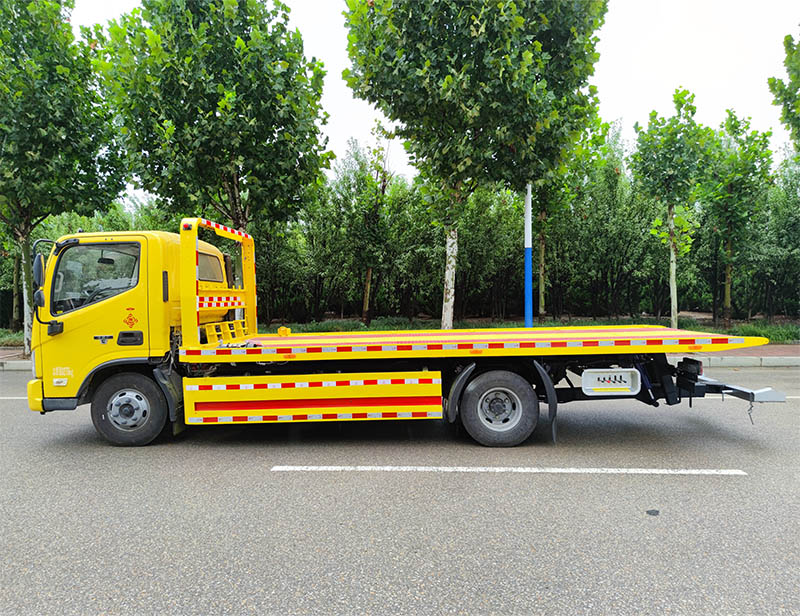

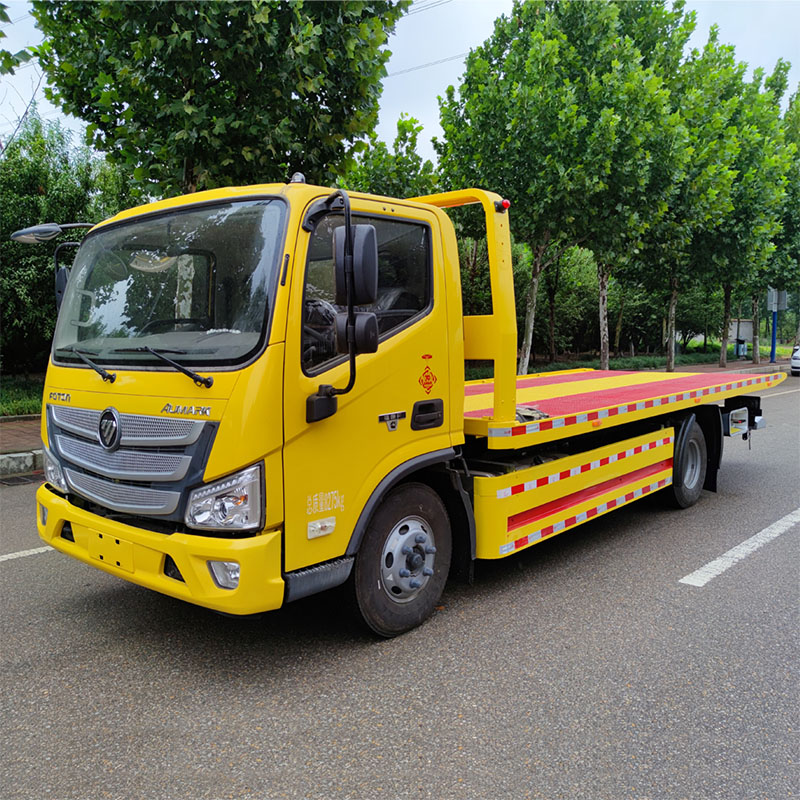

Flatbed Tow Truck 3 ton

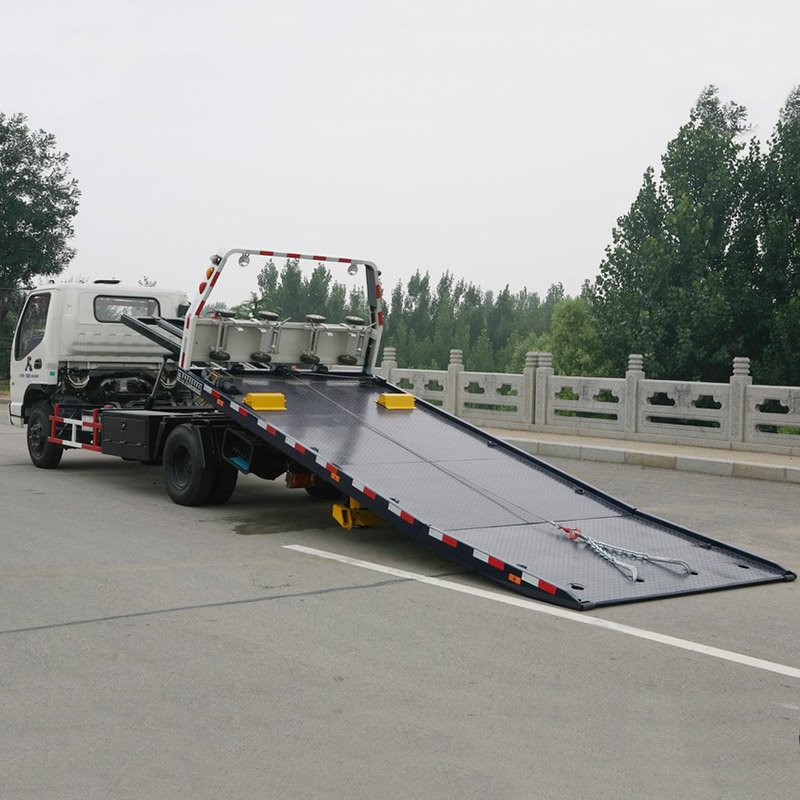

JNE Flatbed Tow Truck include different load capacity of rollback bed from 3 ton to 8 ton. Flatbed tow trucks use their long flat platform mounted to the back of the truck to carry vehicles. This can be very beneficial for towing and transporting vehicles that are too low to the ground and cannot be towed the traditional way. And the flatbed tow trucks are usually equipped with an underlift towing device at rear, which enables the flatbed towing truck can pull a car and carry a car on flatbed at same time. With flatbed tow trucks, the cars are loaded on flatbed and wheels do not touch the road so they won't be damaged during long distance transport.

Specification:

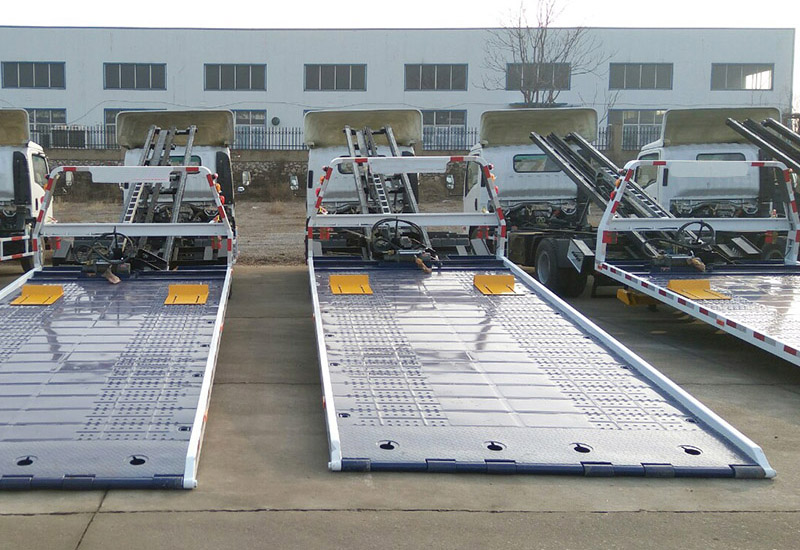

FLATBED

Dimension: 5700mm*2500mm(L*W)

Distance of Slippage:  3600mm

Loading Capacity: 3000kg

Rated Pull Force of Winch:  4090kg

Min. Inclination Angle:  8°

UNDER-LIFT

Max. retracted lift weight: 3000kg

Max. extended lift weight:  1600kg

Chassis

SINOTRUK, FOTON, JAC, ISUZU or other brands

We can customize the upper structure body of flatbed tow truck and tilt tray body on your truck chassis.
