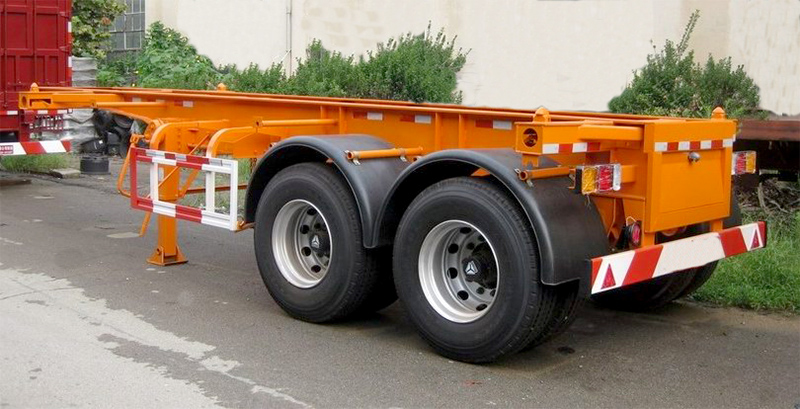

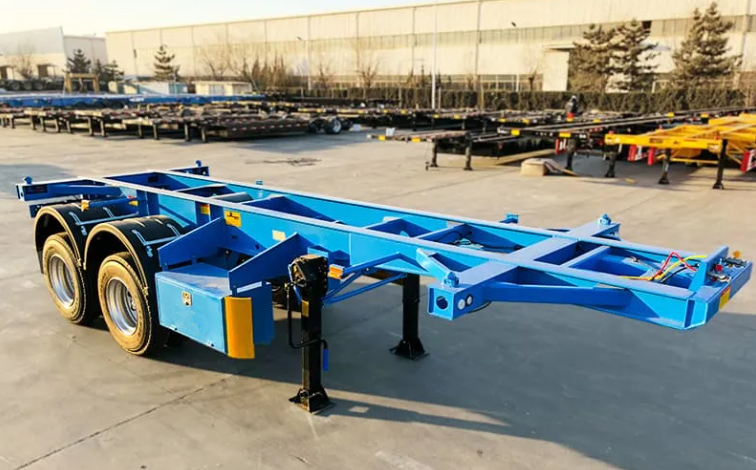

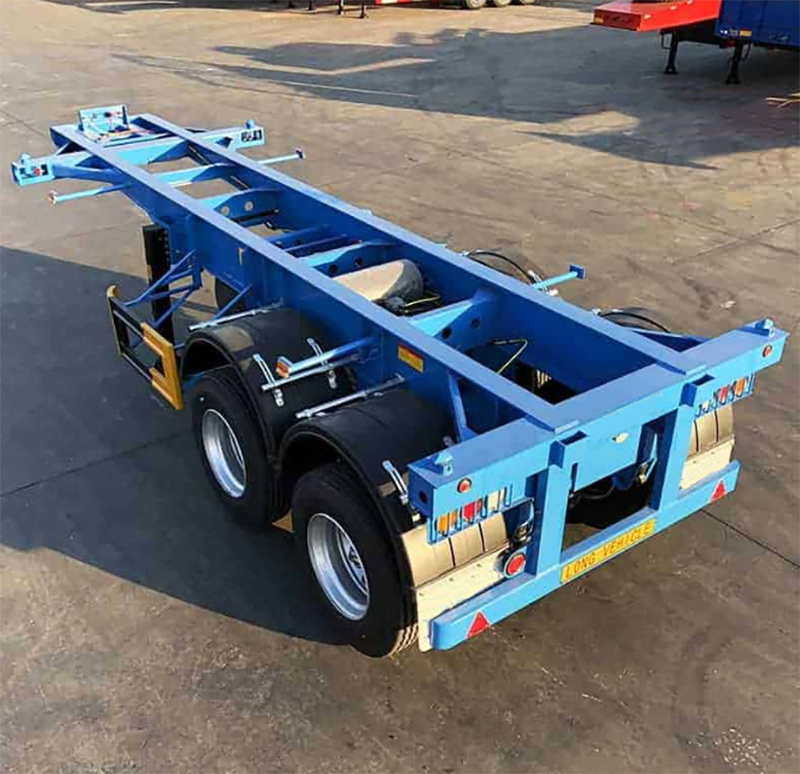

20FT Container Chassis Trailer For Sale

20Ft container chassis is generally used in ports, ships, roads, routes, bridges, tunnels, transfer stations,supporting multimodal transport logistics systems.

The container chassis trailer is mainly used for medium and long-distance transportation and is generally usedto transport containers. According to your needs, we provide 4 to 8 sets of locks.

Feature

Main beam:

High strength Q345 or T700 steel material welded by submerged arc

Twist Lock:

ISO standard lock suitable worldwide container, additional protection switch avoid mistake operate

Kingpin:

JOST brand bolting type, changing between 2" or 3.5" possible

Axle:

BPW, FUWA, and PD brands optional support longer working without maintenance

Rim:

Quality steel or alu rim customized

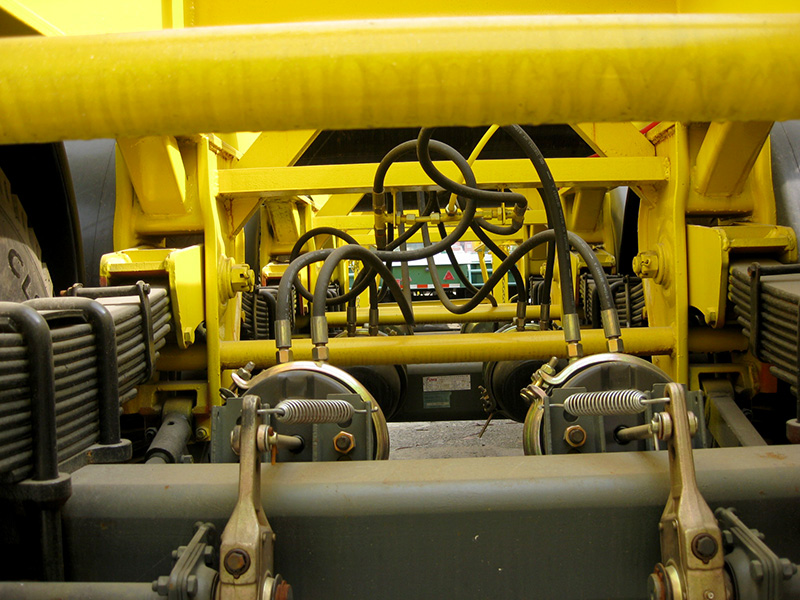

Brake system:

Dual-line air brake system, T30/30 chambers, and WABCO relay emergency valve, ABS and EBS systemoptional

Brake Pipe:

Nylon wire pipe more safety for high-pressure braking

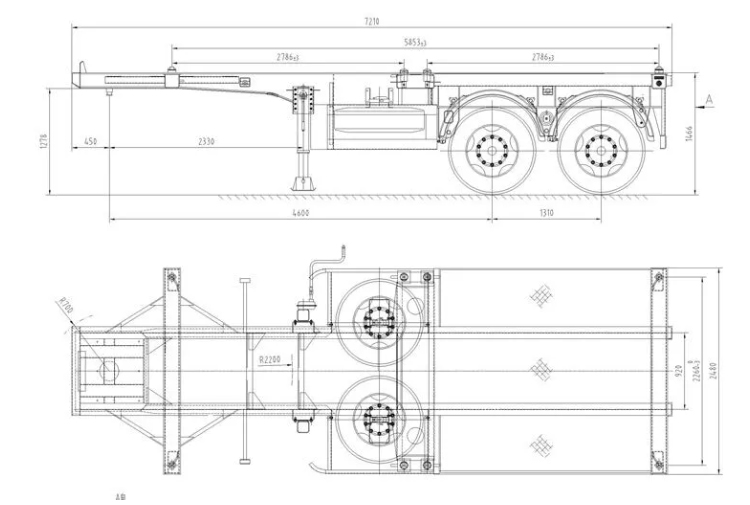

Dimension:7500*2500*1550mm

Height:1550mm

Width:2500mm,8'

Weight:3700Kg,8,000 lbs

Twist-Lock:4/8 set lSo Standard

Axle:2 axles BPW/FUWA/PDME etc

Skeleton container transport vehicles are specially designed for transporting various types of containers such as 20, 40, and 45 feet. They have a reasonable structure, reliable operation, beautiful appearance, and can unleash the full potential of the vehicle. The diverse selection of products can meet the personalized needs of customers. According to customer needs, we can produce structures such as goose neck, skeleton, flat plate, and low flat plate. The whole vehicle manufacturing is guaranteed by tooling, with stable quality and reliable performance. The steel comes from large domestic steel mills; The main purchased parts are selected from good domestic brands with reliable quality. Perform shot blasting treatment on the entire vehicle to remove welding stress.
