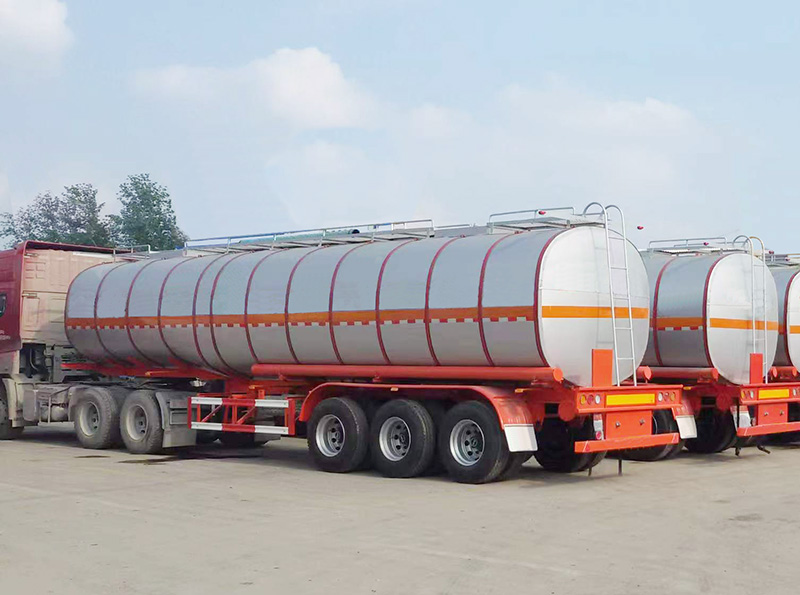

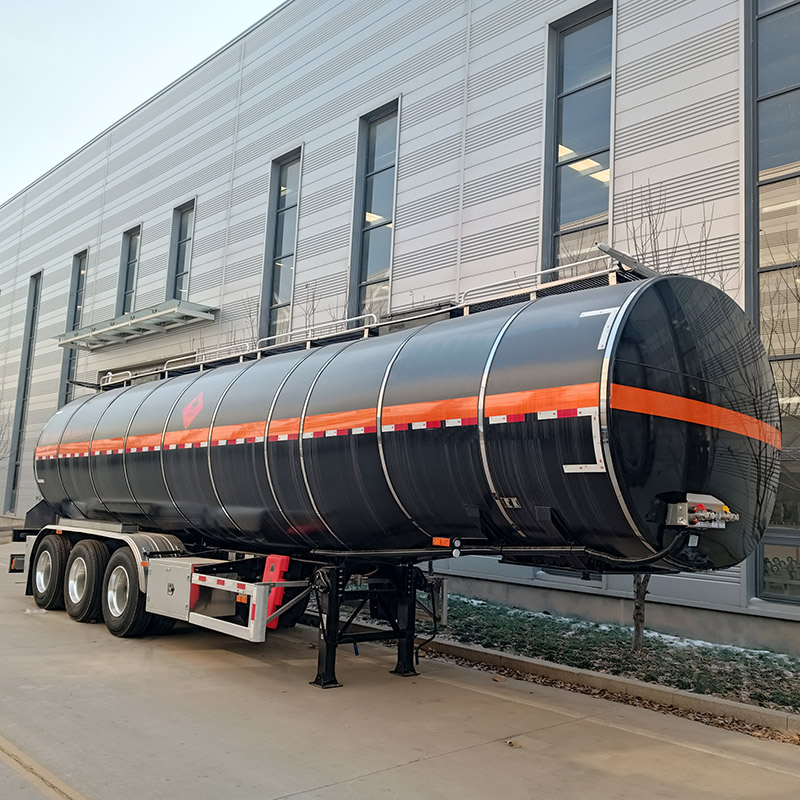

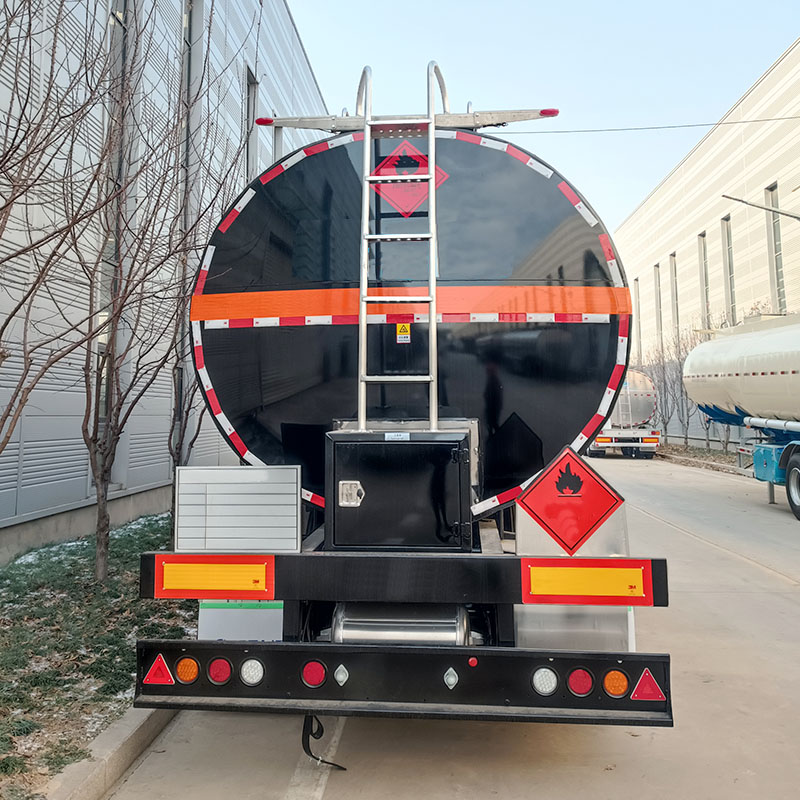

3 Axles Asphalt Tanker Trailer

Asphalt tanker trailer also known as bitumen tank semi trailer,  which are used to transport and store asphalt/bitumen. Bitumen trailers are designed to carry bitumen safely and efficiently, and they are available in different sizes and configurations to suit various applications.

Asphalt Tank Trailer

Max Payload: 42000 liters (customization)

Size: 12500mm*2550mm*3880mm

Axle Brand: 13 Ton Axle BPW/FUWA

Suspension System: Mechanical spring / Air suspension system

Land Gear: JOST/FUWA/Yahua 28T

Function: Bitumen Transportation

Tire: 12R22.5 or 315/80R22.5

Main Beam: Q345B or ST52

Material: Carbon Steel/ stainless steel

Kingpin: 50# or 90#

Light: Led

The tank body of an asphalt tanker trailer could be made of various materials such as carbon steel or stainless steel. Carbon steel is commonly used due to its durability and strength, while stainless steel is preferred for its corrosion resistance.

The thickness of the tank body walls can also vary based on the properties of the bitumen being transported.

To maintain the temperature of the asphalt, an asphalt tank trailer is equipped with an insulation layer.

We provide you with asphalt tanker semi trailers that optimize efficiency, lower costs, and deliver a long life cycle.
